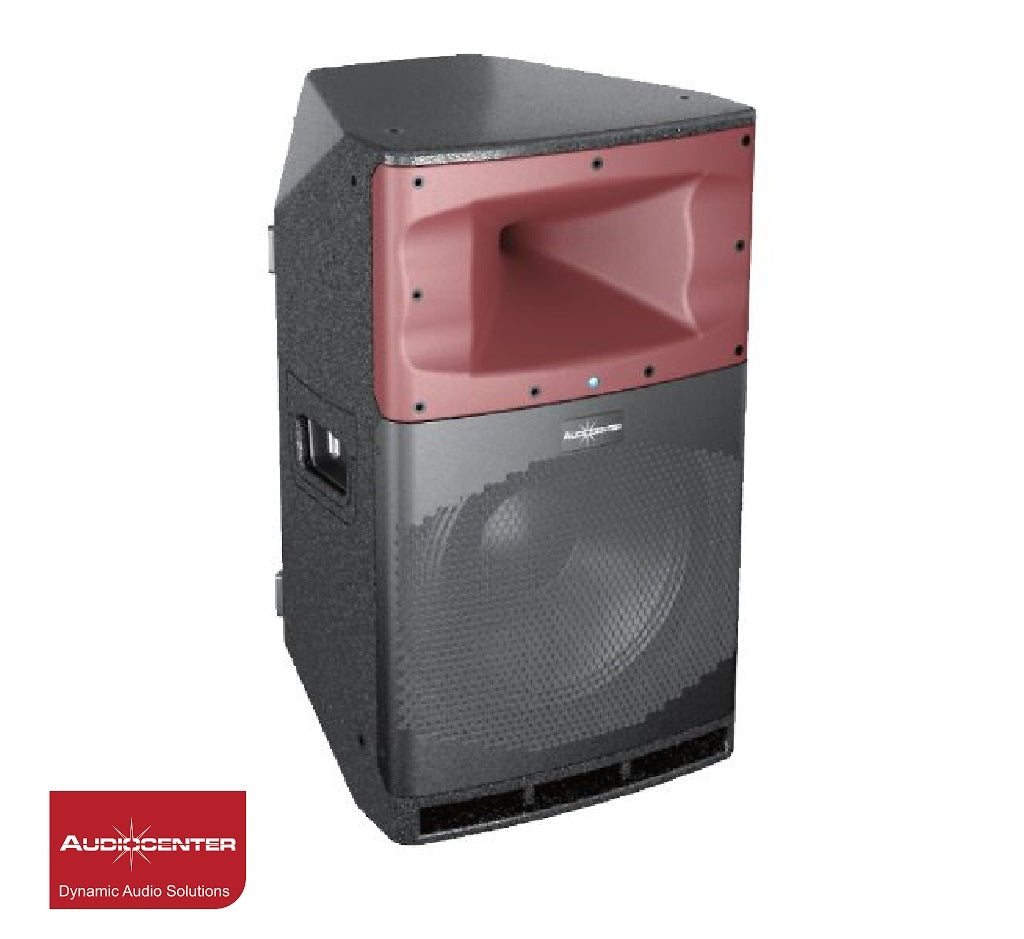

Audiocenter SA315 15" 800W Active DSP-controlled Full Range Loudspeaker
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.
Categories
Audiocenter

Audiocenter SA315 15" 800W Active DSP-controlled Full Range Loudspeaker

Available: In Stock
RM3,300.00
Enquiry Now
Share:
  • Type: Active DSP-controlled full range loudspeaker
  • Frequency Response(-10dB): 44Hz-20kHz
  • Horizontal Coverage: 60°
  • Vertical Coverage: 40°
  • Maximum Calculated SPL/1M (Continuous/Peak): 128dB/134dB
  • HF Driver: Customized driver,1.75” voice coil and 1.0”exit
  • LF Driver: Customized 15” driver, 3.0” voice coil
  • Processor: 48kHz signal sampling frequency
  • Amplifier Circuitry: Class D
  • Power (RMS standards): 800W
  • Peak Power: 1600W
  • Frequency Response(1W 8Ω 2ch): 20Hz-20kHz(±0.5dB)
  • Intermodulation Distortion: ＜0.05%
  • Total Harmonic Distortion: ＜0.05%
  • Cooling System: Cooling with fans, air convection
  • Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
  • Signal Input: 1x female XLR(Mono jack 6.35), 1x Mono jack 6.35, 1x RCA, 1x wireless bluetooth
  • Signal Output: 1× male XLR
  • Power Input: IEC power connector
  • Working Voltage: 100-240V~ (±10%,50/60Hz）
  • Power consumption (1/8 output power): 64W
  • Cabinet Material: CNC machined plywood
  • Grille: Iron mesh
  • Handles: 2 side
  • Monitor Angle: Symmetrical 45° monitoring Angle
  • Hanging Hardwares: M8 screw
  • Pole Mount: Base hole Φ35mm
  • Speaker Dimension (W×H×D): 439x760x454mm
  • Carton Dimension (W×H×D): 525×855×540mm
  • Net Weight: 27.0kg
  • Shipping Weight: 30.5kg
