DYNAMAX Sound System DYNAMAX PW8170 8-Channel 170W x 2 Powered Mixer With USB / Bluetooth / 32-Bit DSP / 48V Phantom Power (MCMC Approval), 15" Loudspeakers (1 Pair) , Speaker Stand, Microphone, Cable
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.
Categories
DYNAMAX

DYNAMAX Sound System DYNAMAX PW8170 8-Channel 170W x 2 Powered Mixer With USB / Bluetooth / 32-Bit DSP / 48V Phantom Power (MCMC Approval), 15" Loudspeakers (1 Pair) , Speaker Stand, Microphone, Cable

Available: In Stock
RM1,890.00
Enquiry Now
Share:

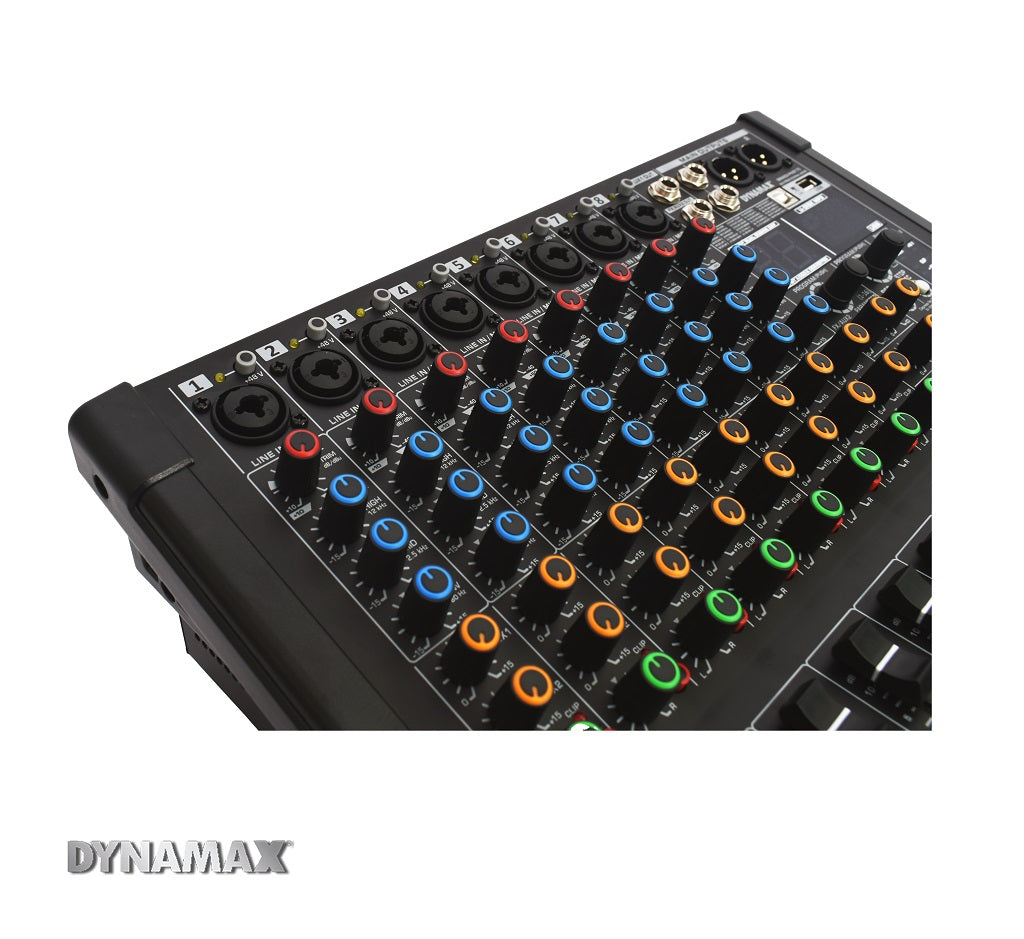

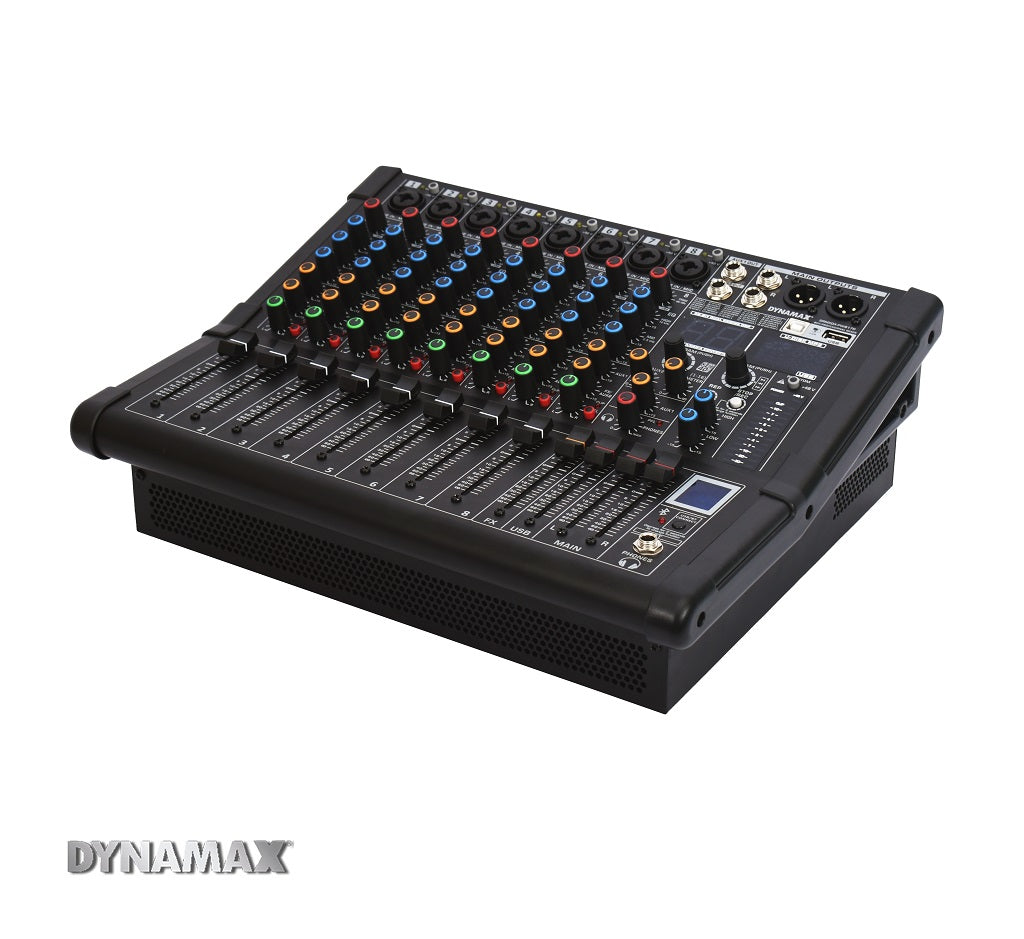

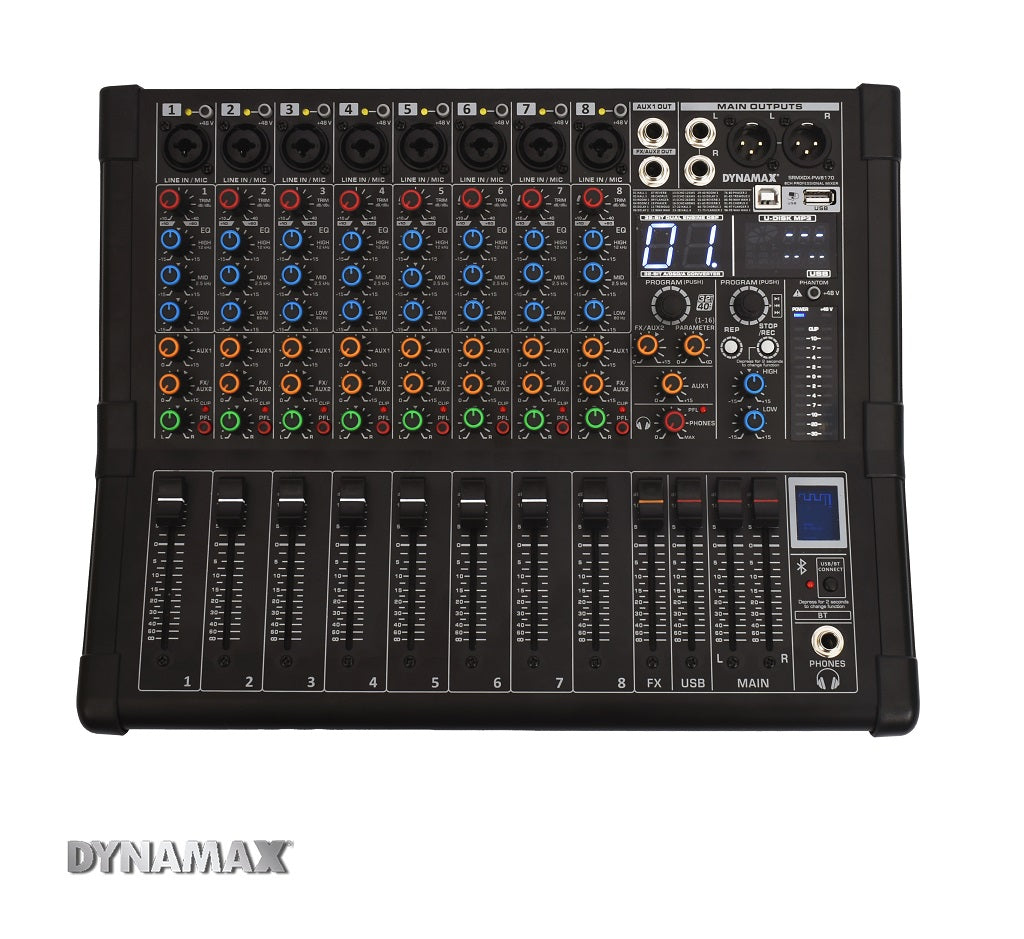

  • DYNAMAX PW8170 8-Channel 170W x 2 Powered Mixer With USB / Bluetooth / 32-Bit DSP / 48V Phantom Power (MCMC Approval)
  • With 8CH mic/line inputs
  • With USB type B port to connect with PC
  • Bluetooth/USB for MP3 playback
  • 99-Digital preset effect, 32-bit processing
  • 2 groups output (XLR & ¼” TRS )
  • AUX output x2 ( AUX1 + FX/AUX2)
  • With TRIM & AUX control on each channel
  • L+R stereo control for main channel output
  • 2-Band EQ for MP3 (BT/USB) •
  • +48V Phantom power (individual channel)
  • With headphone jack
  • Output Power: 170W x 2 / 4 ohm, 113W x 2 / 8 ohm
  • Mixing Channels: 8CH (Combo Jack – XLR + ¼” TRS balanced)
  • AUX: 2 (AUX 1 Out + FX/AUX 2 Out)
  • Main Out: 2 Group (XLR & ¼” TRS )

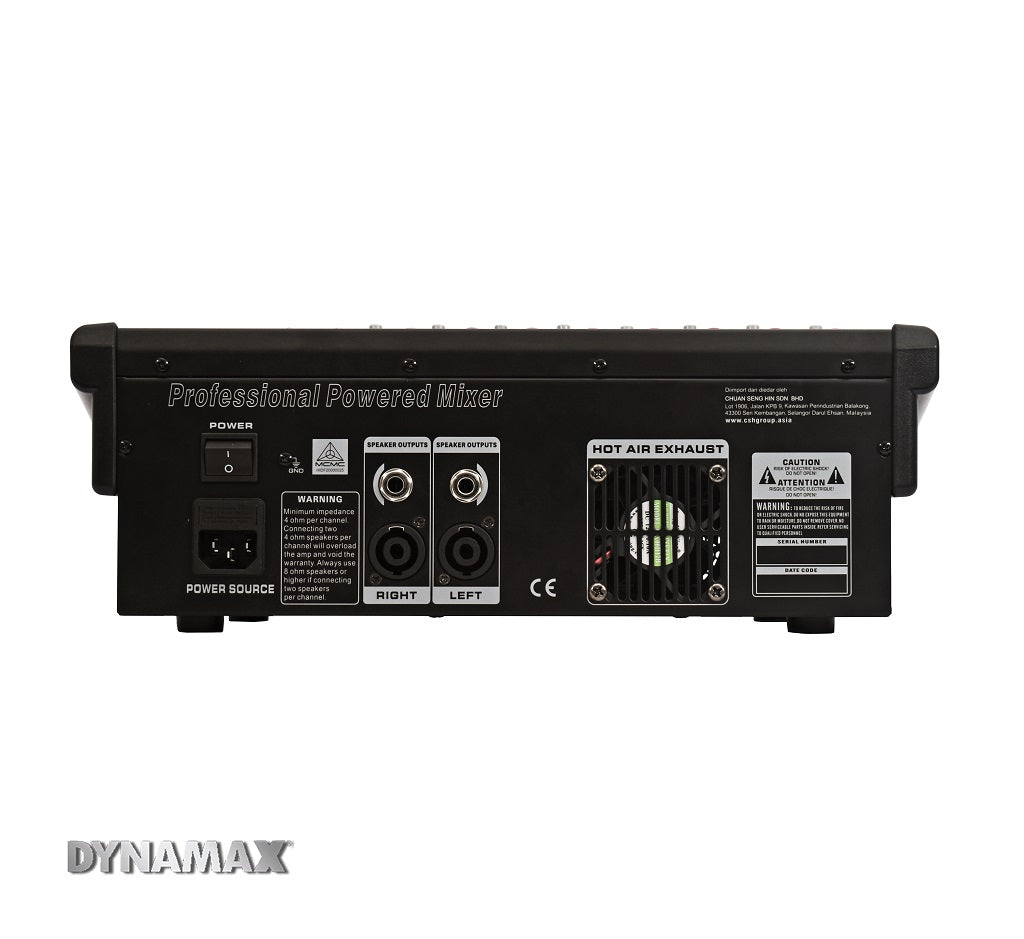

  • Speaker Output: Speakon x 2 | ¼” TRS Jack x 2
  • MIC E.I.N (20 Hz ~ 20 kHz): 0 Ω source resistance -134 dB / 135.7 dB A-weighted 50 Ω source resistance -131 dB / 133.3 dB A-weighted 150 Ω source resistance -129 dB / 130.5 dB A-weighted • Frequency Response: <10 Hz ~ 150 kHz (-1 dB) , <10 Hz ~ 200 kHz (-3 dB)
  • Gain Range: +10 to +60 dB
  • Impedance: approx. 2.6k Ω balanced
  • Signal to Noise Ratio: 110 dB / 122 dB A-weighted (0 dBu in @ + 22 dB gain)
  • Distortion (THD + N): 0.005% / 0.004% A-weighted
  • Line Input: ¼” TRS connector electronically balanced
  • Impedance: approx. 20k Ω balanced , 10k Ω unbalanced
  • Gain Range: -10 to + 40 dB
  • DSP (Digital Signal Processor): 32-bit Sigma-Delta , 64/128-times oversampling , 40kHz (Sampling Rate)
  • Power Supply: Power Cord x 1
  • Product Dimension: 369 x 290 x 125 mm
  • Packaging Dimension: 415 x 185 x 350 mm
  • Net Weight / Gross Weight: 7.6 kg / 8 kg
  • DYNAMAX J12 12" 350W 2 WAY Passive Speaker (1 Pair) OR DYNAMAX TSB312 12" 2-WAY 350W Passive Loudspeaker (1 Pair)
  • DYNAMAX DM722 Dynamic Karaoke Microphone With 5 meter Cable (1 pcs)
  • Speaker Stand (2 pcs)
  • Speaker Cable 10m (2 pcs)
  • XLR Male to Female Mic Cable 15ft
