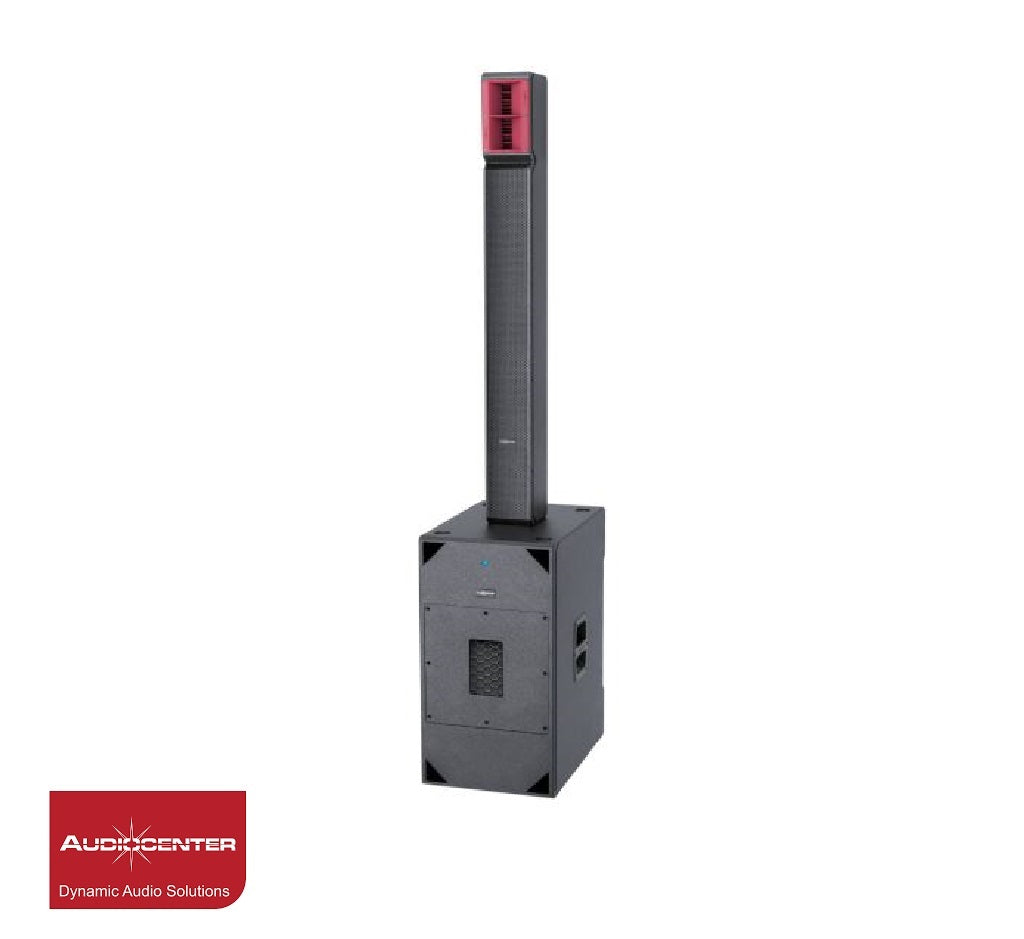

Audiocenter L83 MK2+L83S MK2 2000W Column Loudspeaker System

Available: In Stock
RM9,600.00
Enquiry Now
Share:
  • Type: Active DSP-controlled Column Speaker System
  • Frequency Response(-6dB anechoic chamber): 40Hz-19kHz
  • Maximum Calculated SPL/1M(Continuous/Peak): 129dB/135dB
  • Subwoofer: Customized driver, 2pcs 12” driver
  • LF Driver: Customized driver, 8pcs 3” drivers
  • HF Driver: Customized driver, 2pcs 1” drivers
  • Horizontal Coverage Angle(Symmetrical): 110°
  • Vertical Coverage Angle(Symmetrical): 10°
  • DSP Processor: 96KHz signal sampling frequency, 24bit precision controlled by DSP
  • Class D amplifier Power: 4000W
  • Frequency Response: 20Hz-20KHz(±0.5dB)
  • Intermodulation Distortion: ＜0.05%
  • Total Harmonic Distortion: ＜0.05%
  • Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
  • Cooling System: Fans + air convection
  • Signal Input: 2×Combo (female XLR & Mono jack 6.35), 1×Stereo Bluetooth
  • Signal Output: 1× male XLR
  • Amplifier Output Link L83 MK2: 1× Speaker connector
  • Column Input Link L83S MK2: 1× Speaker connector
  • Power Input: 3 pin power socket
  • Working Voltage: 100V~130V or 220V~240V（±10%，50/60Hz
  • Cabinet Material: CNC made of excellent wood
  • L65S MK2 Pole Mount: M20 base Φ35mm
  • Dimension(W×H×D): L83 MK2 123x1200x165mm, L83S MK2 374x690x538mm
  • Height for 1pc L83 MK2+1pc L83S MK2+Pole: 1896mm
  • Net Weight: L83 MK2 10.5Kg, L83S MK2 34.0Kg
