Audiocenter Butterfly 4ca Line Array Speaker
- Category: AUDIOCENTER, Commercial, Pro-Audio Systems
Enquiry Now
Overview
-

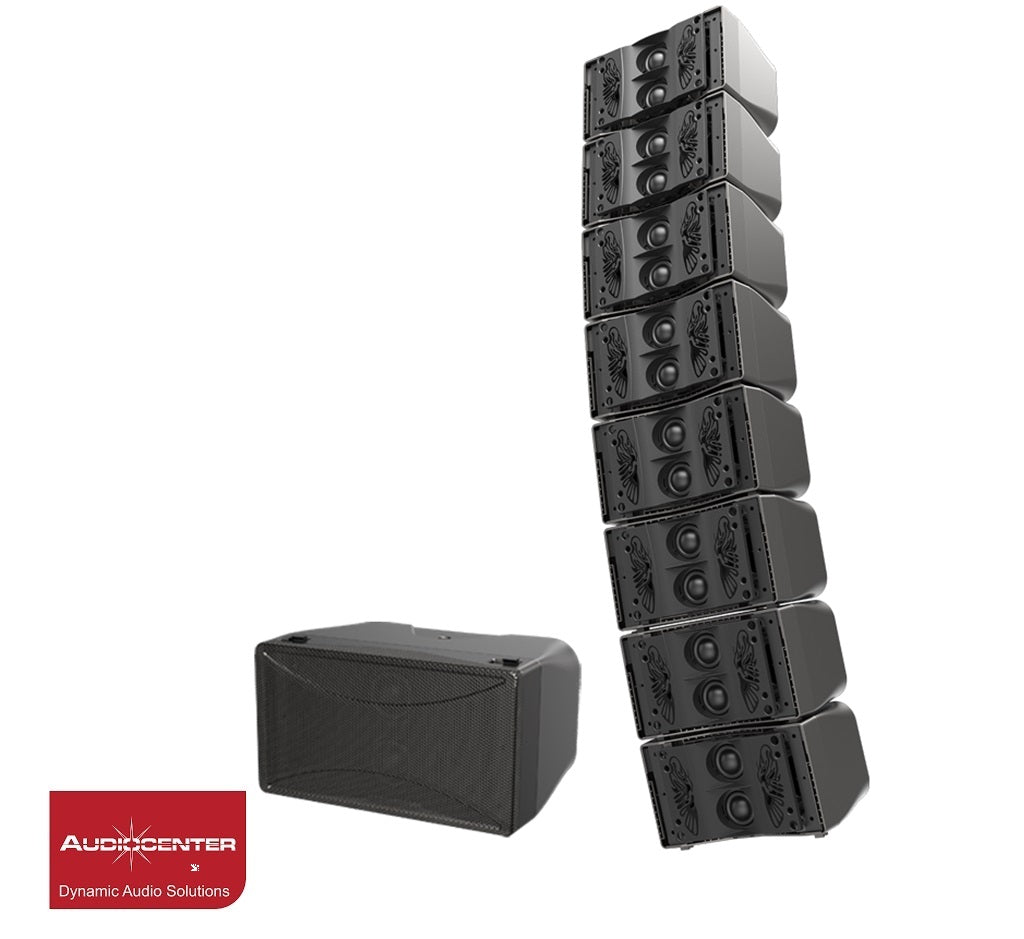

Butterfly 4ca consists of 1 pc 4” LF driver and 2 pcs soft dome tweeters. The HF adopts a unique T-eyeTM design, and the array layout is assembled in the center front of the speaker. The speaker has a wider frequency response and larger near-field coverage, and the sound is more delicate.
-
Butterfly 4ca adopts a modular design concept, which can be used individually or in combination with multiple speakers. It has good scalability and can flexibly adapt to various environments and occasions.
-

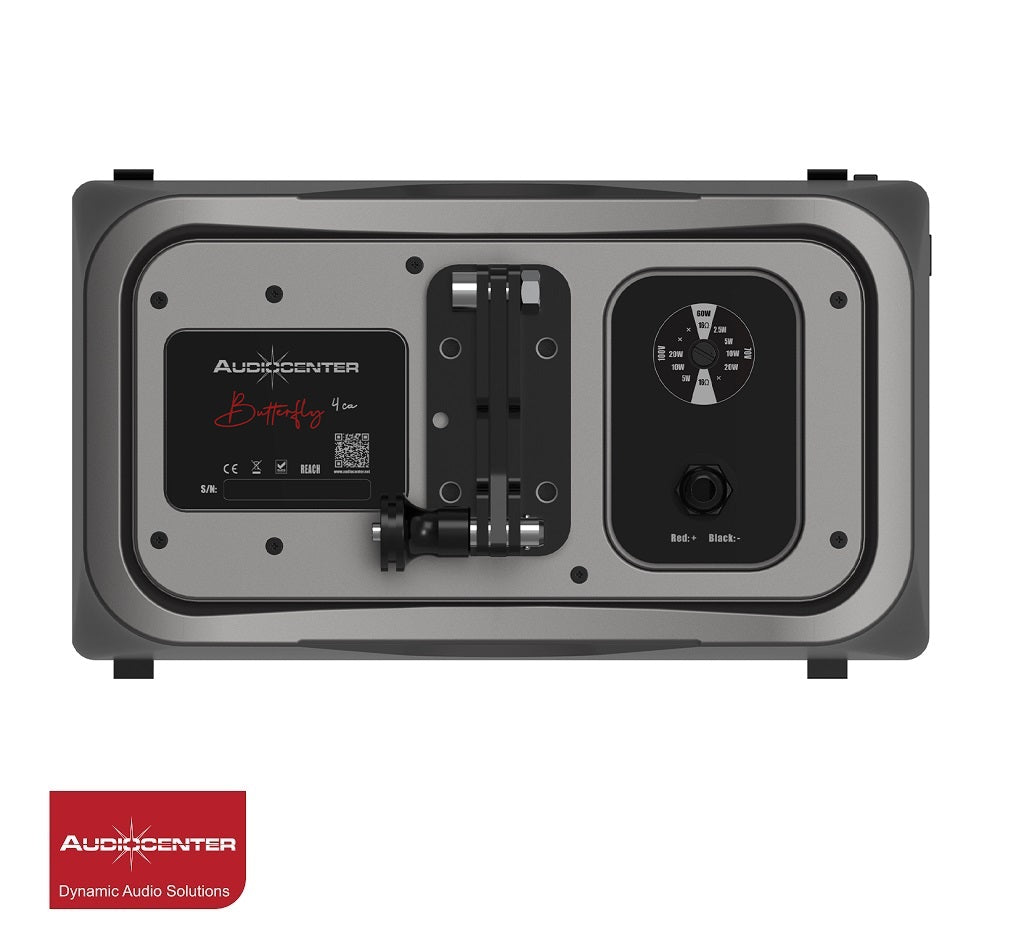

Butterfly is with both high Z (70V/100V) and low Z（16Ω）output.
70V: 2.5W/5W/10W/20W
100V:5W/10W/20W/x
Specifications
|
Type |
Multipurpose Micro-Line Array Loudspeaker |
|
Low Z Power |
60W |
|
High Z Power |
70V:2.5W/5W/10W/20W 100V:5W/10W/20W/x |
|
Frequency Response(-10dB) |
100Hz-22kHz |
|
Horizontal Coverage |
100° |
|
Vertical Coverage |
20° |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
111dB/117dB |
|
HF Driver |
2×1” driver |
|
LF Driver |
4” driver,1” voice coil |
|
Impedance |
16Ω |
|
Crossover Mode |
Passive Crossover |
|
Input Connectors |
All-weather protective connector |
|
Cabinet Material |
ABS plastic material |
|
Angle adjustment |
0°,4° |
|
Cabinet Color |
Metal gray |
|
Grille |
Aluminium mesh |
|
Mesh Color |
Metal gray is standard and default color, Contact Audiocenter for customization |
|
Pole Mount |
M10 |
|
Optional accessories |
Hanging Bracket, Wall Mount Bracket, Support Bracket |
|
Speaker Dimensions(W×H×D) |
215×122×165mm |
|
Carton Dimensions(W×H×D) |
253×160×247mm |
|
Net Weight |
2.5kg |
|
Shipping Weight |
2.9kg |
|
Technical Support and After-sales Service |
Global application support team,EASE GLL Files |
