Categories
DYNAMAX

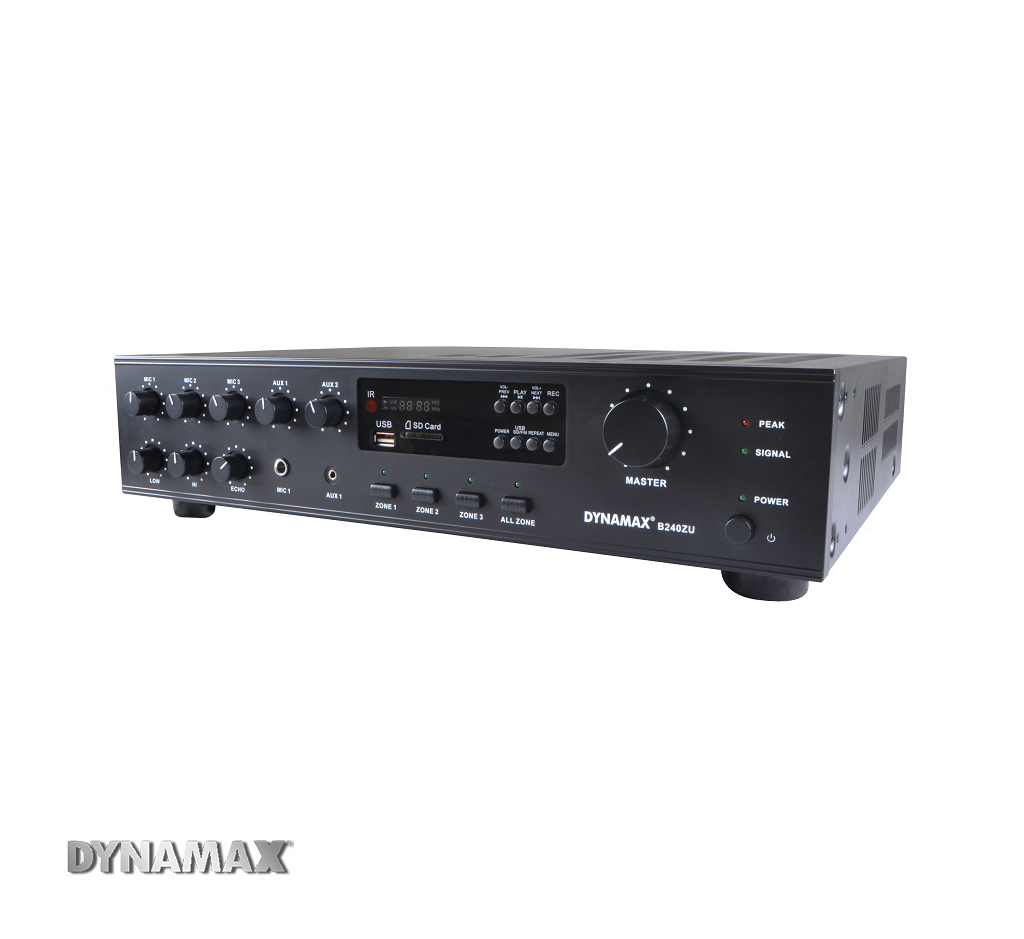

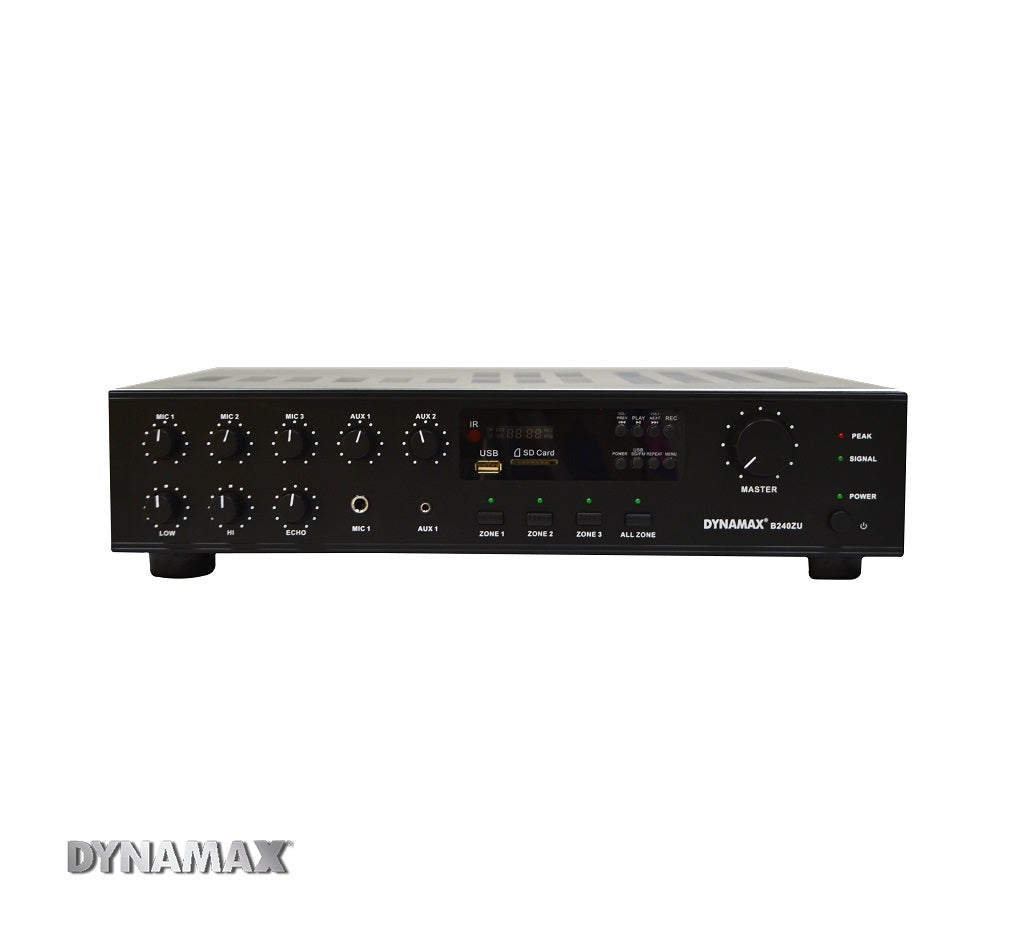

DYNAMAX B240ZU 240W PA Amplifier

Available: In Stock
RM1,080.00
Enquiry Now
Share:

APPLICATION

  • Broadcasting
  • Paging
  • Background Music
  • Schools
  • Offices
  • Shops
  • Factories
  • Mosques
  • Churches
  • Assembly Hall

FEATURES

  • MP3 Player with USB
  • MP3 Recording
  • FM Tuner
  • Phantom Power
  • 3 Zones Selection
  • 1 Pre-Output (to channel to other amplifier or REC)
  • 3 x 6.3 mm or XLR input
  • 2 x RCA Aux input
  • Rack Mount Bracket

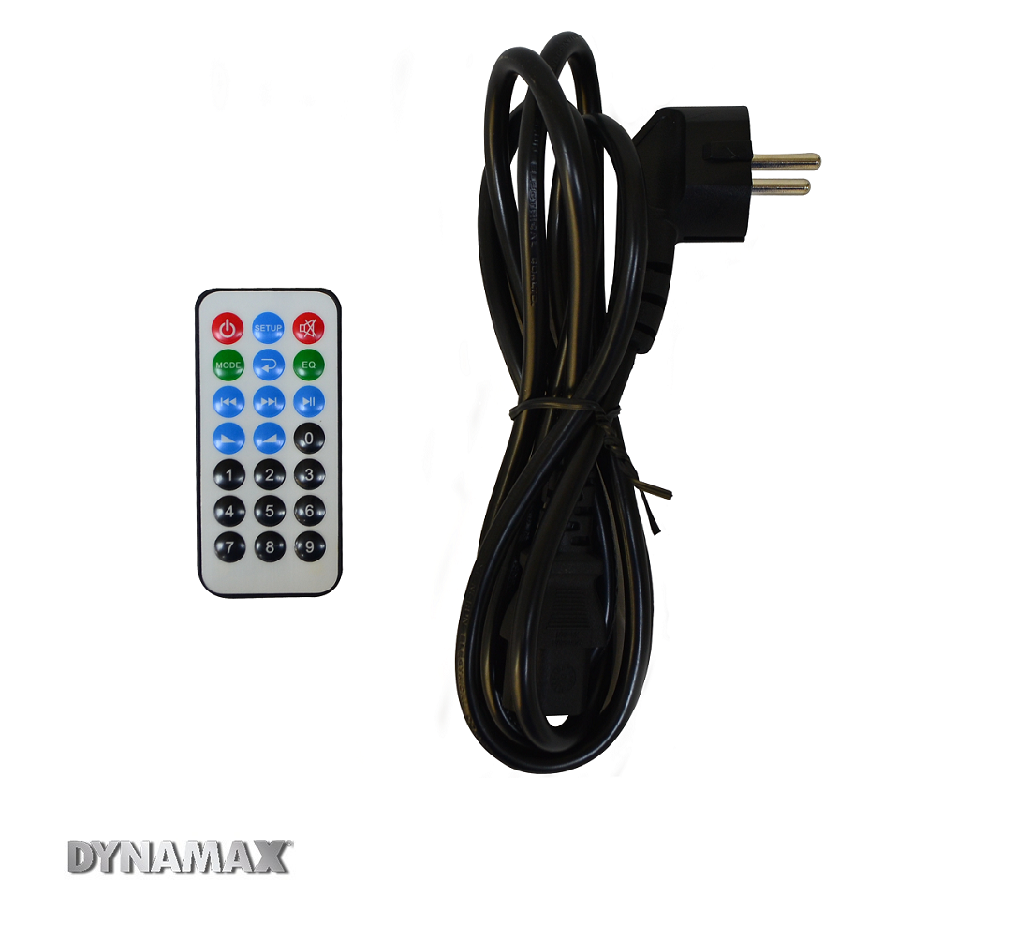

  • Remote Control

SPECIFICATION

  • Rated Output : 240 W
  • Power Consumption : 238 W
  • DC Current Consumption (at rated output) : 15 A
  • Power Source :
    • H version 220 - 240V AC or 24V DC
    • L version 110 - 120V AC or 24V DC
  • Frequency Response : 50-20,000 Hz, ±3 dB
  • Distortion : Less than 1% at 1 kHz, 1/3 rated power
  • Inputs :
    • MIC 1 : -60 dBV (1.0 mV), 600 Ω, Balanced, Equivalent to Phone Jack
    • MIC 2 : -60 dBV (1.0 mV), 600 Ω, Balanced, Equivalent to Phone Jack
    • MIC 3 : -60 dBV (1.0 mV), 600 Ω, Balanced, Equivalent to Phone Jack
    • AUX 1 : -20 dBV (100 mV), 10 kΩ, Unbalanced, RCA Pin Jack
    • AUX 2 : -20 dBV (100 mV), 10 kΩ, Unbalanced, RCA Pin Jack
  • Outputs :
    • Speaker Out : All speaker outputs are Floating Balance
    • 100 V : 42 Ω
    • 70 V : 21 Ω
    • 4 Ω : 31 V
    • REC Out : 0 dBV (1.0V), 600 Ω, Unbalanced, RCA Pin Jack
  • Phantom Power : DC + 21 V (MIC 1)
  • S/N Ratio : Over 60 dB
  • Tone Control :
    • Bass : ± 10 dB at 100 Hz
    • Treble : ± 10 dB at 10 kHz
  • Muting : MIC 1 overrides other input signals with 0 - 30 dB attenuation by voice switch of MIC 1 input level
  • Ventilation : Cooling Fan
  • Indicators : Power LED, Signal LED, Peak LED
  • Finish :
    • Panel : ABS Resin, Black
    • Case : Steel Plate, Black
  • Dimension : 425 x 90 x 370 mm
  • Weight : 13.2 kg
