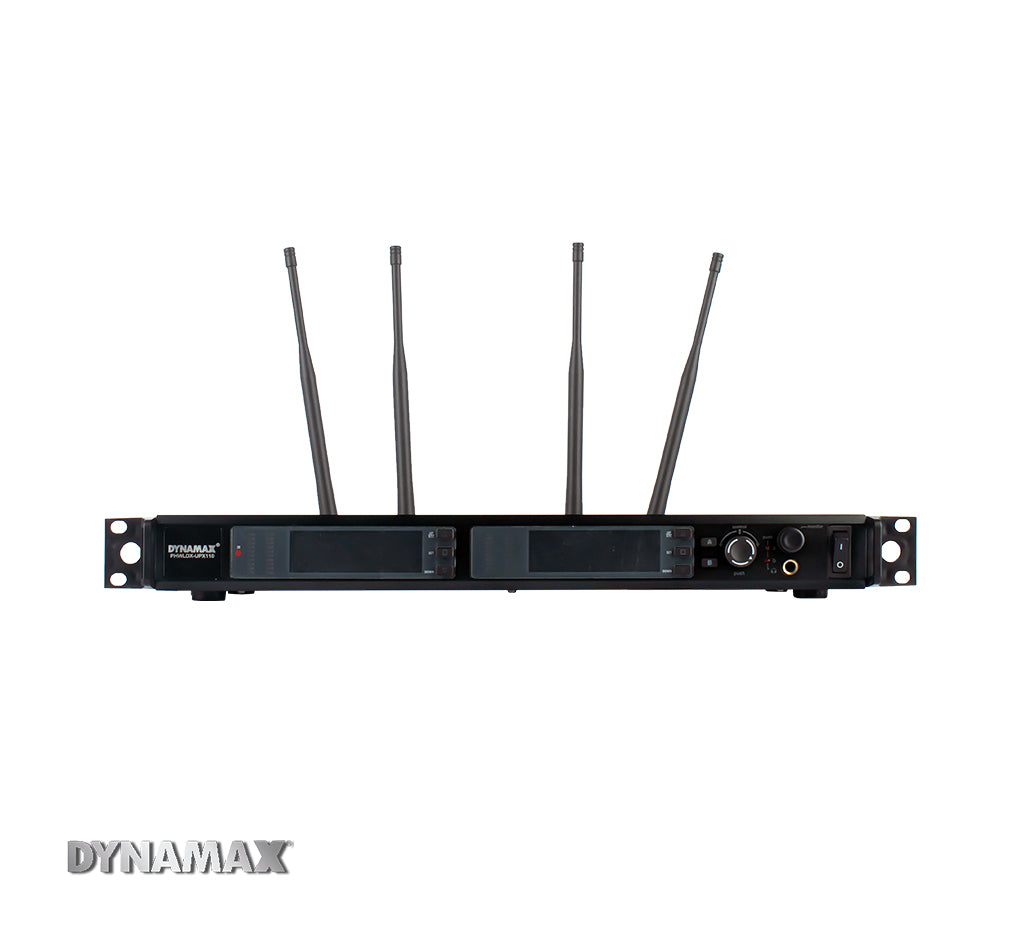

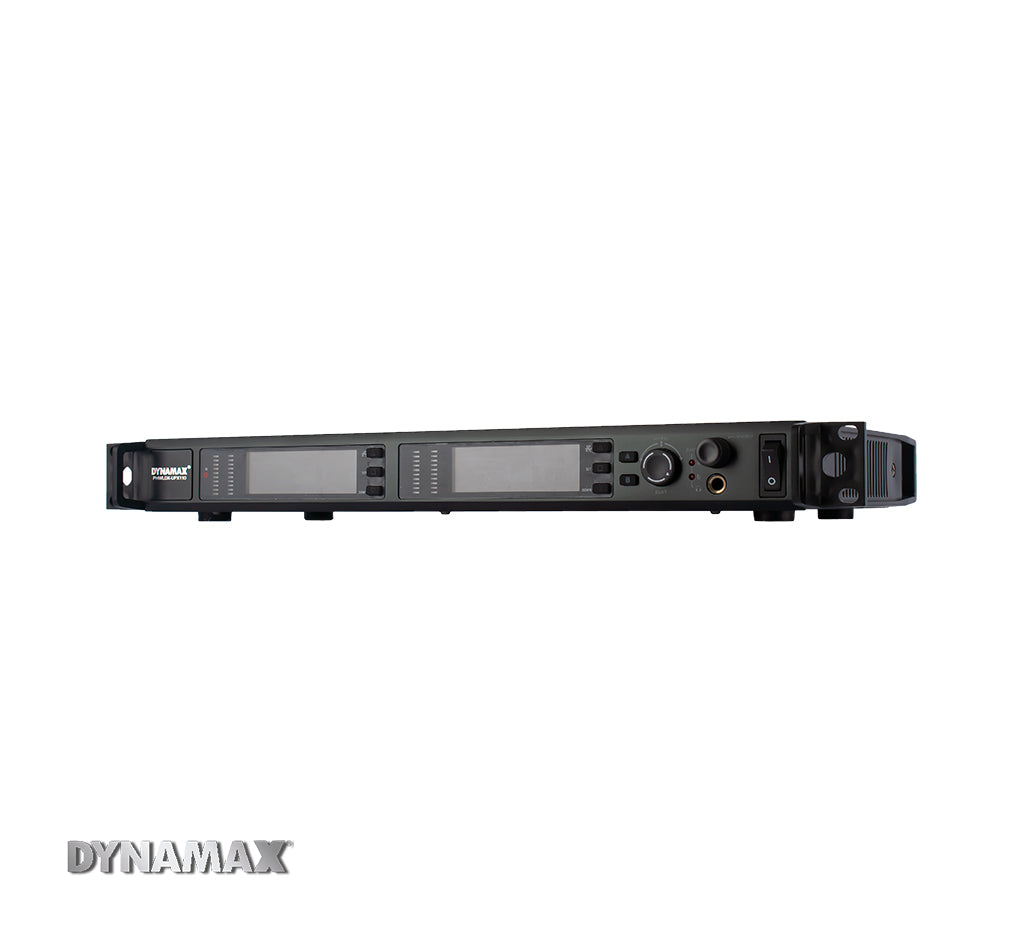

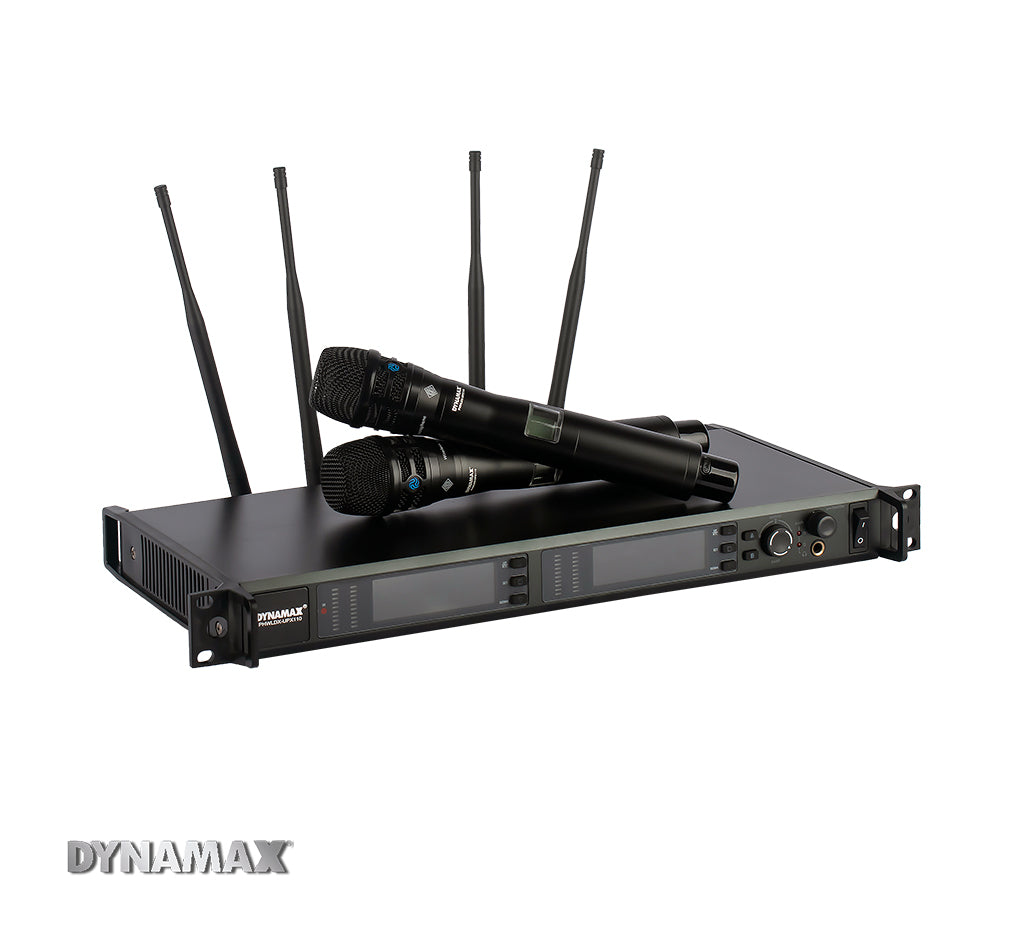

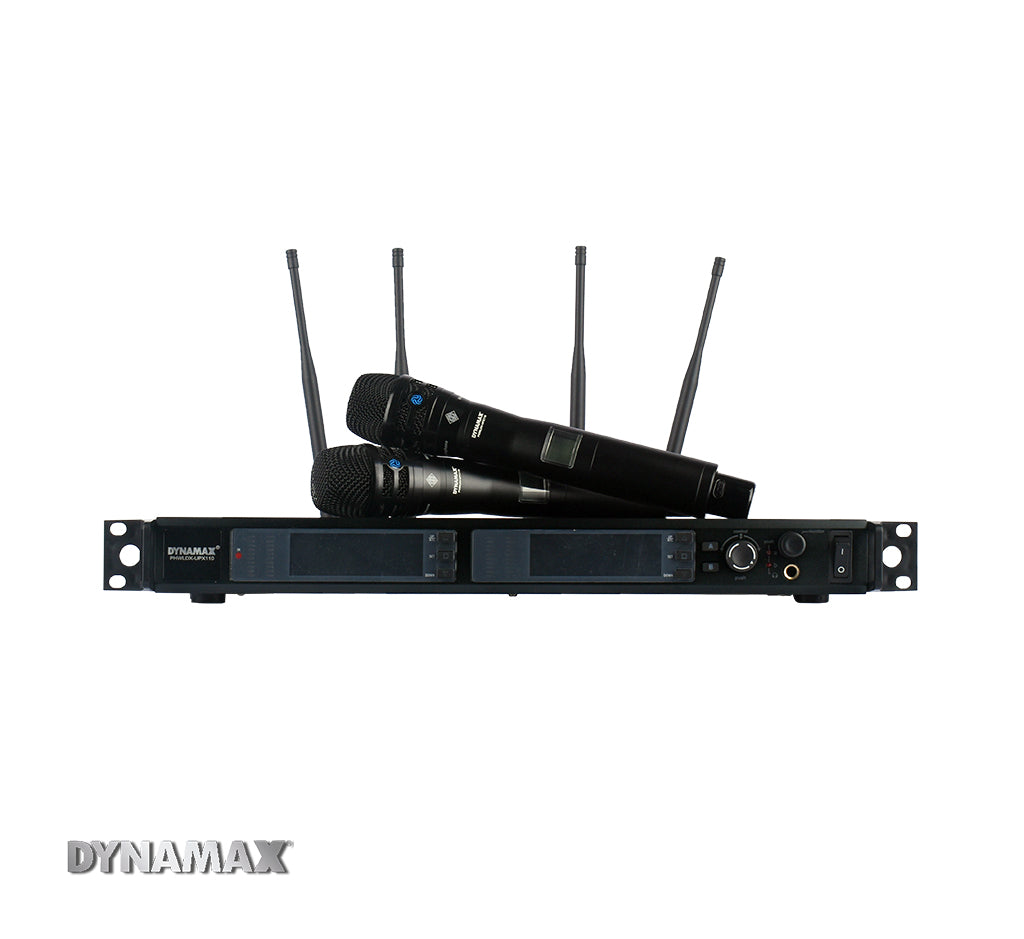

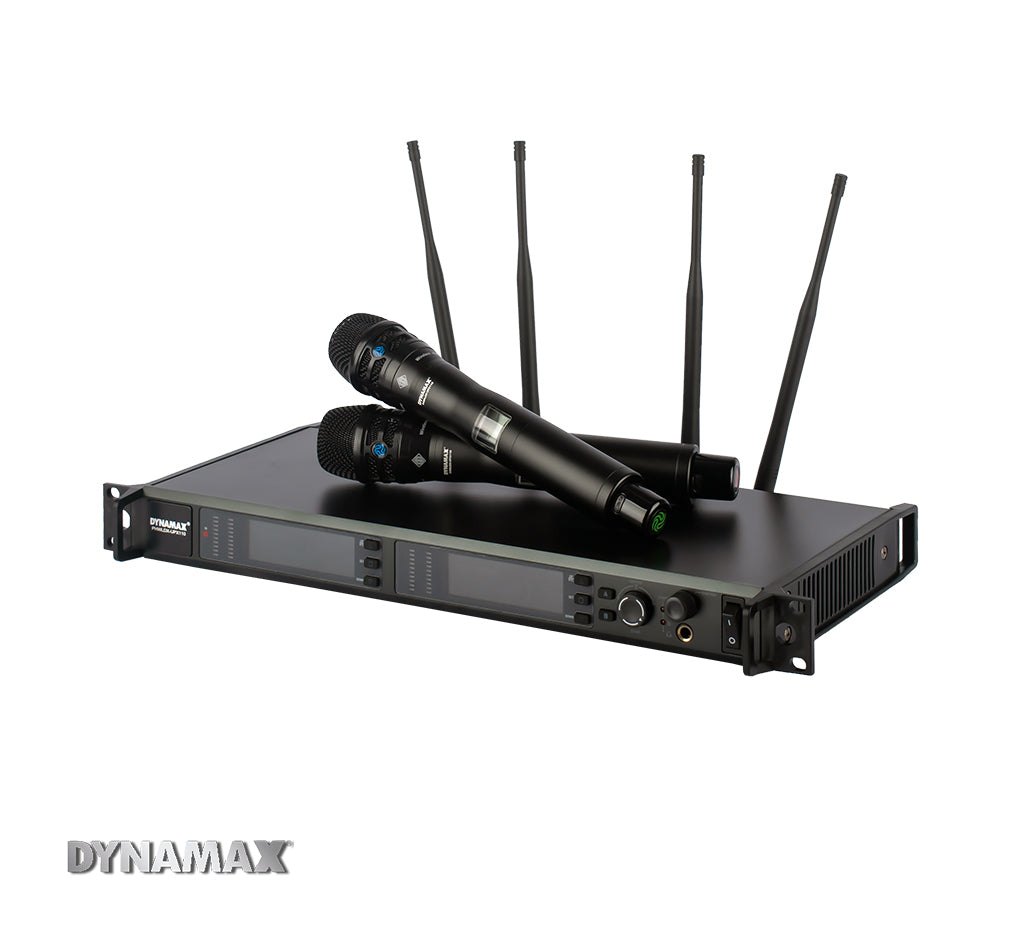

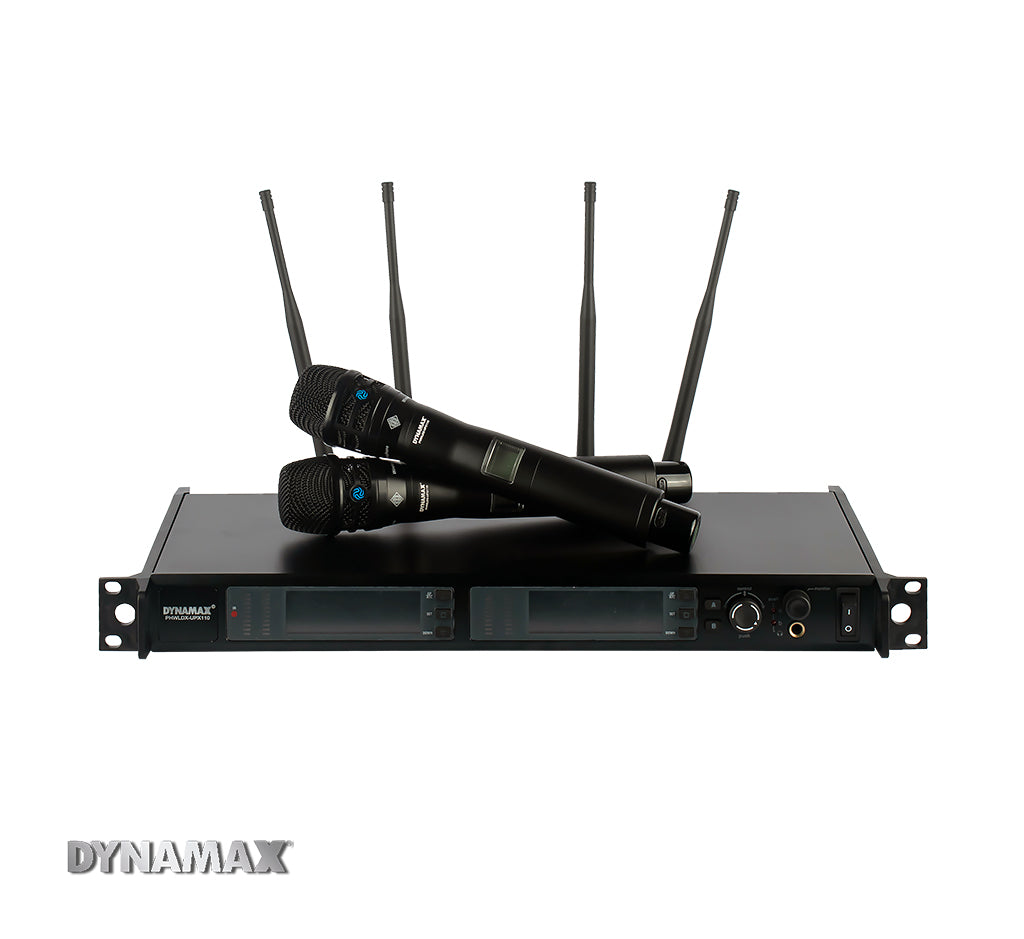

DYNAMAX UPX110 Dual UHF True Diversity Wireless Microphone

Available: In Stock
RM1,550.00
Enquiry Now
Share:

APPLICATION

  • Lecture Hall
  • Large Conference Hall
  • DJ Dance Hall
  • Professional KTV
  • Home Entertainment
  • Large & Small Stages

FEATURES

  • UHF 500 - 690 Mhz frequency band, the use of PLL frequency stability system with 200 optional channels.
  • Professional UHF true diversity wireless system.
  • Automatic search function, the transmitter infrared frequency window on the receiver at the infrared frequency of the window, infrared can automatically search for the corresponding frequency.

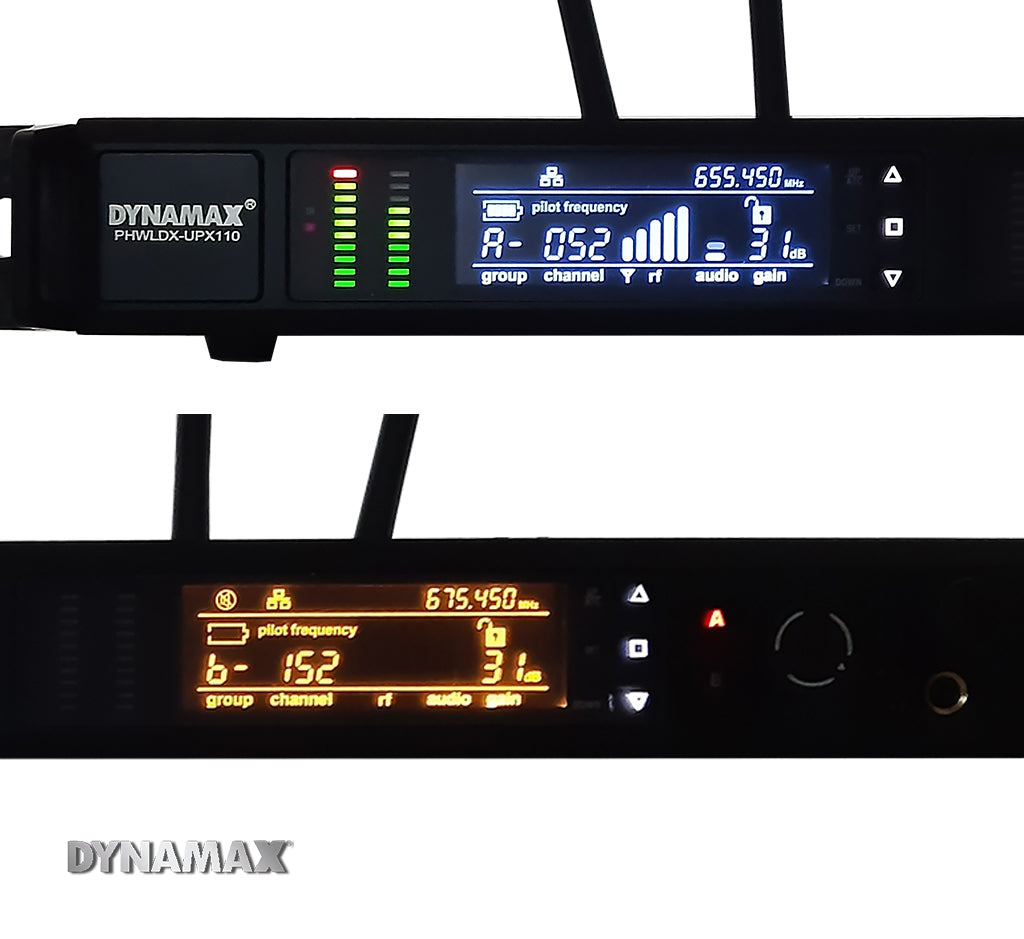

  • LCD display able to showcase battery level, frequency signal, signal strength, audio level and other information status of the wireless unit.
  • Independent volume adjustment.

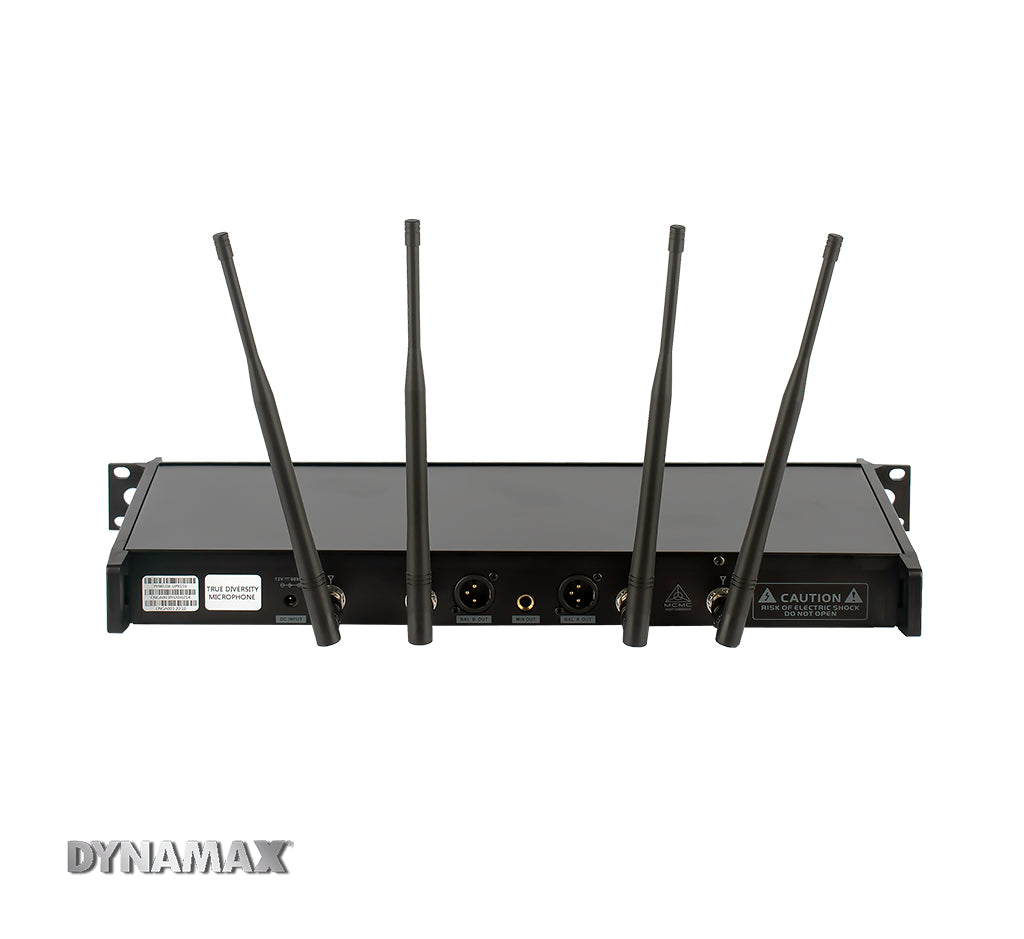

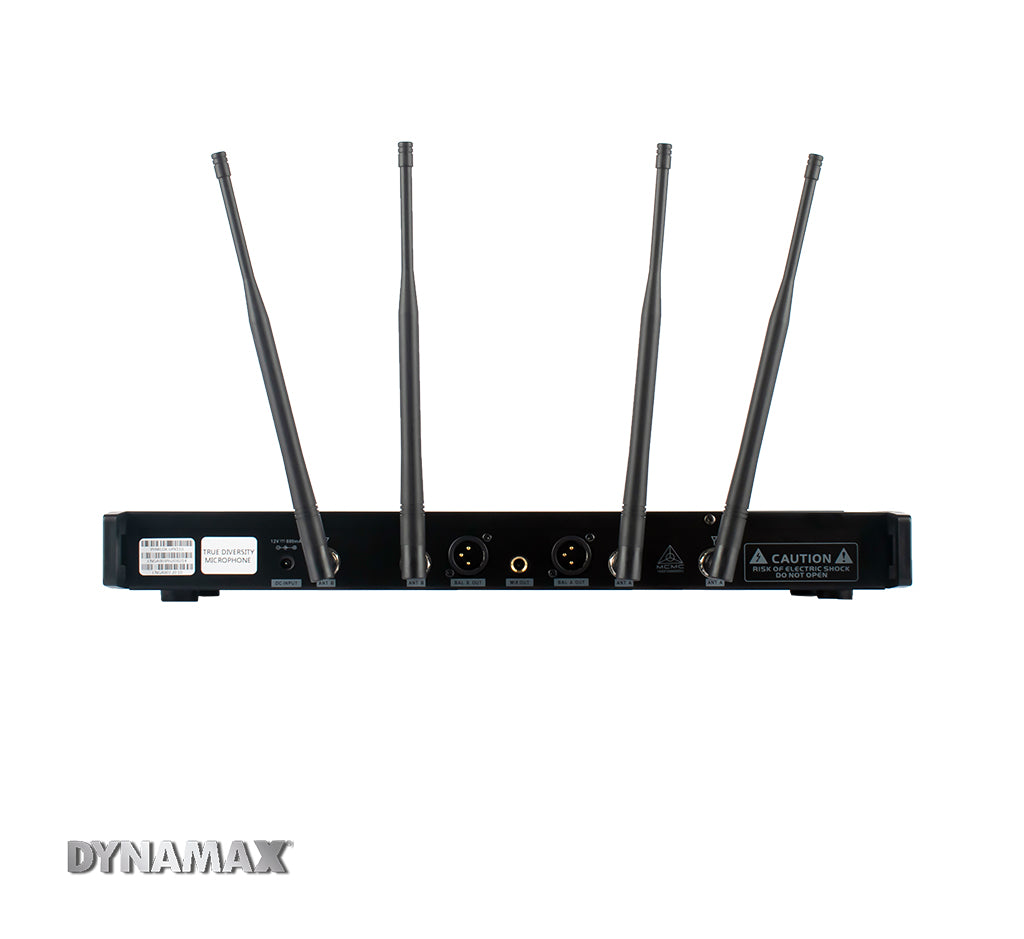

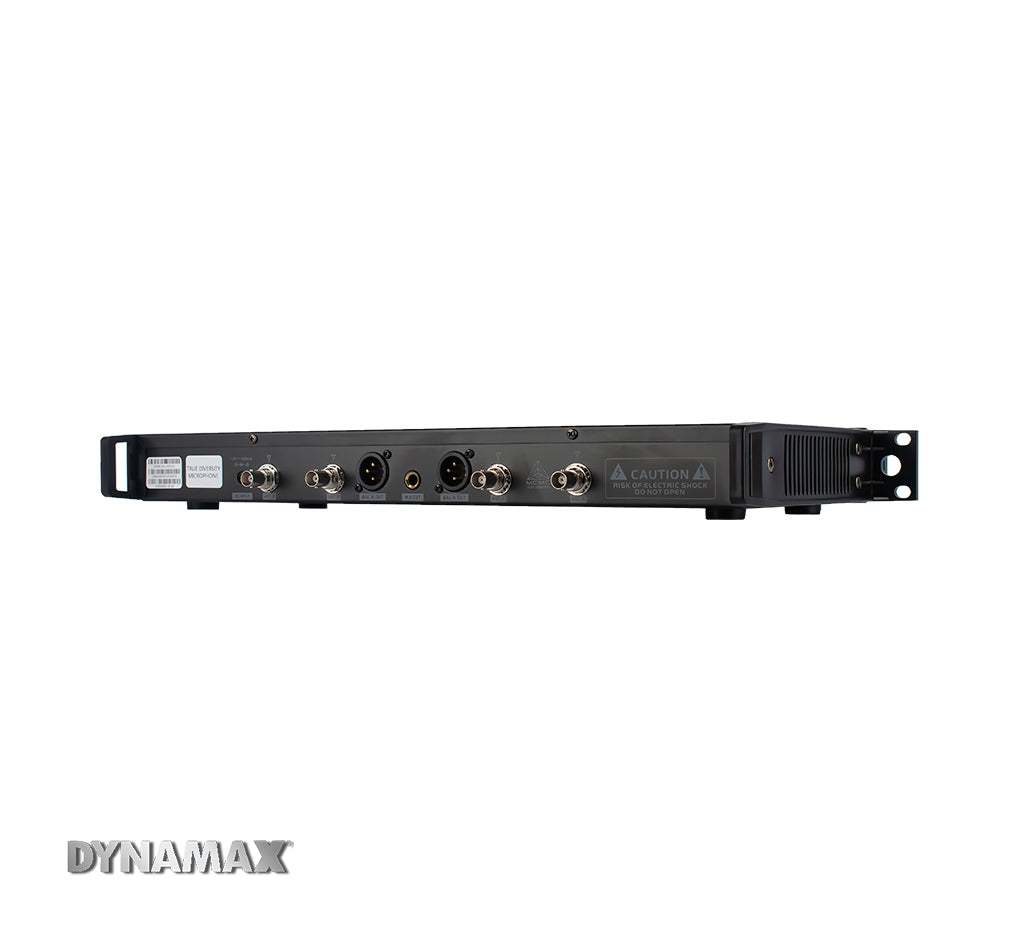

  • With a single independent XLR balanced output.

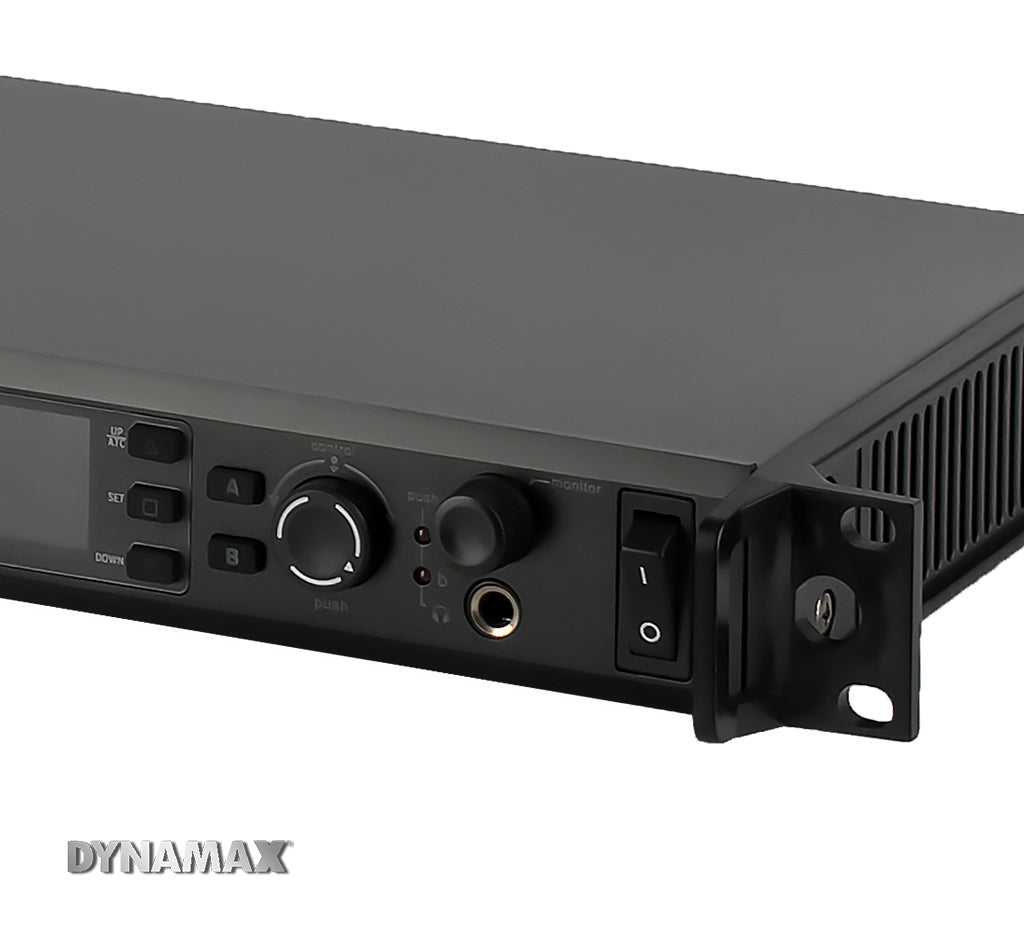

  • Built-in two 6.3mm monitoring jack is suitable for the backstage monitoring function of large and small performances.
  • With 6.35mm mix output jack.
  • Receiver and transmitter LCD display, signal strength, audio dynamic, and operating frequency.

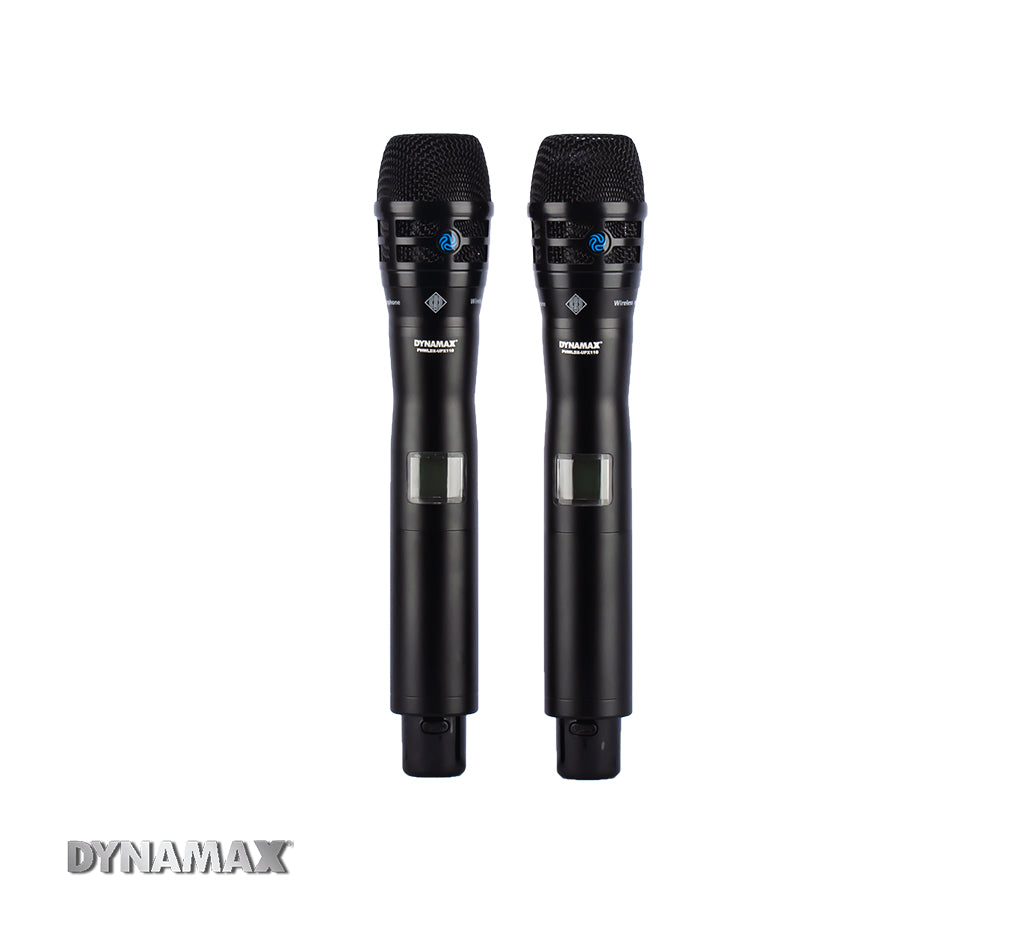

  • Aluminium hand microphone and receiver.
  • DC12V power adapter.

SPECIFICATION

 Receiver
  • Frequency Range : UHF 500 - 690 MHz
  • Max. Number of Channel : 200
  • Bandwidth : 190 MHz
  • Receive Sensitivity : -105 dBm
  • Signal to Noise Ratio : 105 dB(A)
  • Distortion : <0.5%
  • Audio Output Level : 8 dBu max.
  • Power Requirement : 12V DC / Current 1A
  • Product Dimension : 480 x 230 x 48 mm
  • Packing Dimension : 510 x 308 x 140 mm
  • Net / Gross Weight : 2.85 kg / 4.95kg

Transmitter

  • Frequency Range : UHF 500 - 690 MHz
  • Bandwidth : 190 MHz
  • Harmonic Suppression : >55 dBc
  • Max. Frequency Offset : ±25 kHz
  • Frequency Response : 60 Hz - 15 kHz (-3 dB)
  • Signal to Noise Ratio : >105 dB(A)
  • Distortion : <0.5%
  • Output Power : 12 dBm (16 mW) / 5 dBm (3.2 mW)
  • Power Supply : 2AA batteries 1.5V
  • Charge Batteries : > 8 hours
