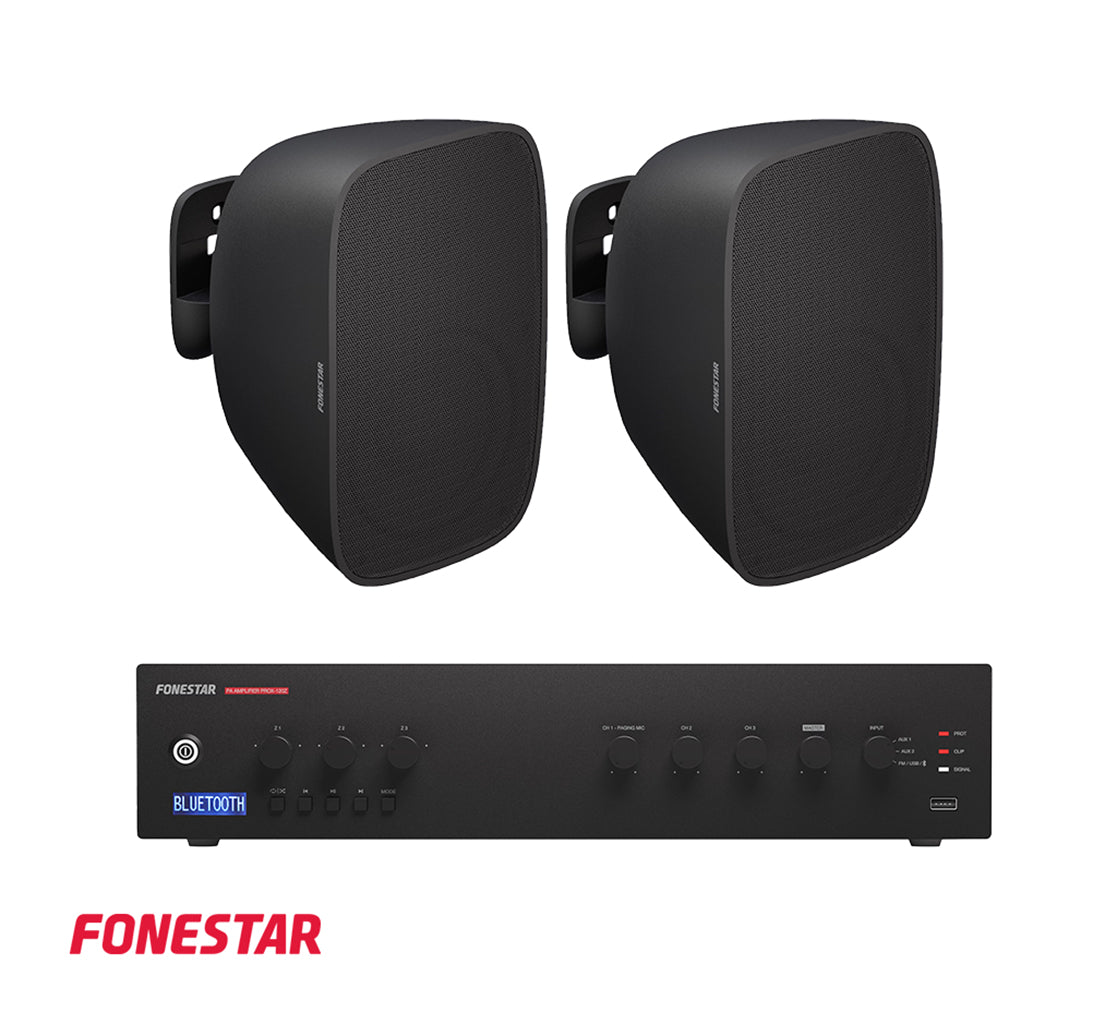

Fonestar Background Music System PROX-120Z 120W Multi-Zone PA Amplifier, 2 units SONORA 5TN 5.25" 40W Wall Mount Box Speakers
Enquiry Now
Fonestar Background Music System PROX-120Z 120W Multi-Zone PA Amplifier, 2 units SONORA 5TN 5.25" 40W Wall Mount Box Speakers
Available:
In Stock
RM0.00
Enquiry Now
Share:

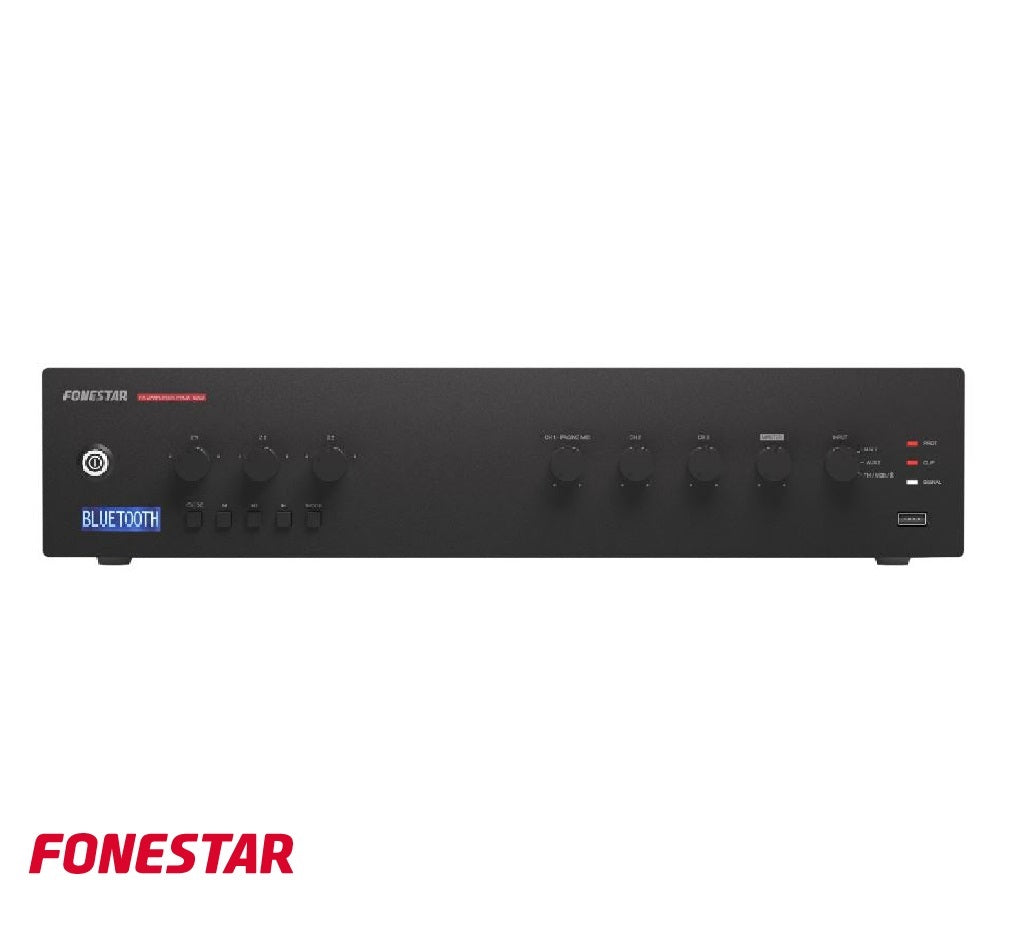

Fonestar PROX-120Z 120W PA Amplifier, Public Address Amplifier Bluetooth/USB/FM player, 3 outputs zones
- Power: 120 W RMS
- Response: 40-20,000 Hz (-10 dB)
- Distortion: THD+N: < 1% @ 1 kHz
- S/N Ratio: >77 dB
- Protections: Overcurrent, DC and short-circuit at the output

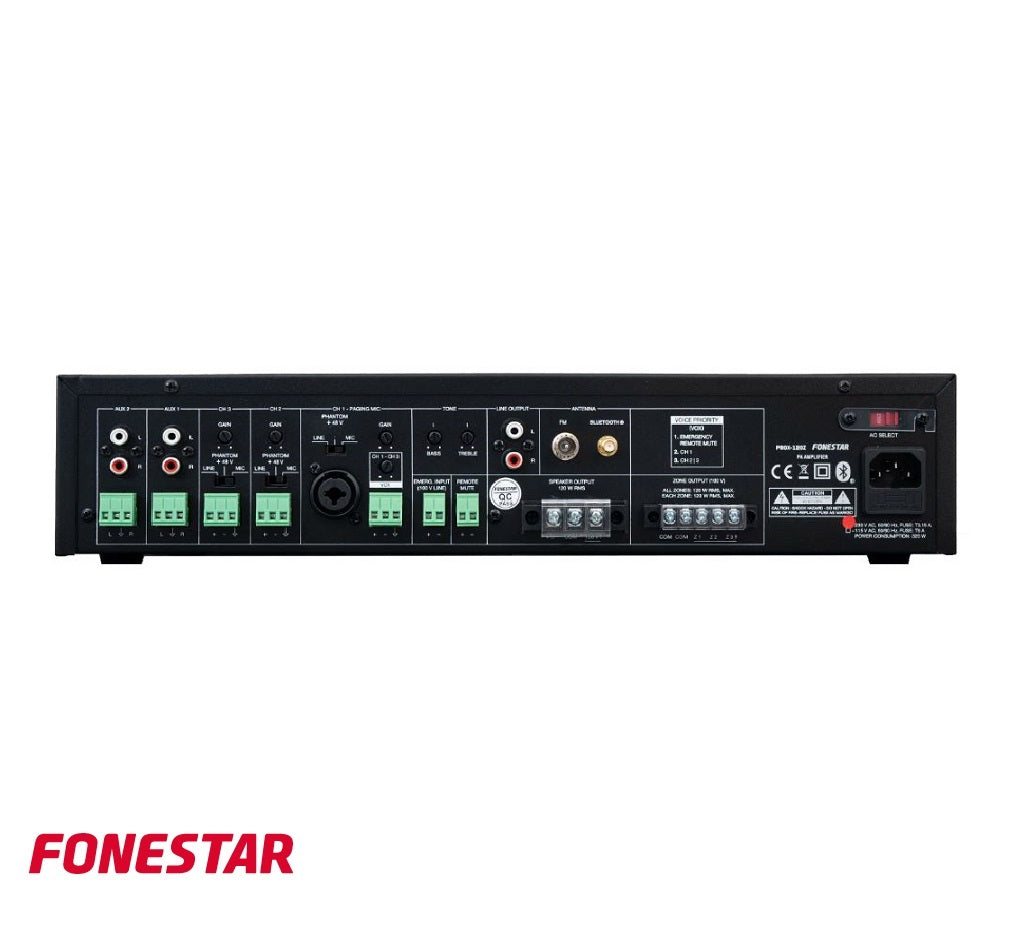

- Inputs: CH 1 balanced mic/line with 48V Phantom, Combo connector (XLR + 6.3mm) and euroblock
- CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector
- Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
- Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
- 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
- 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
- 1 Mute (Emergency Priority) by contact closure. Euroblock connector
- Outputs: 1 line. 2 x RCA connector. 1.25 V RMS (+2 dBV) signal level, 100 V or 4 Ω speaker output, or 3 x 100 V speaker zones with 5-position volume selector switch and OFF
- Impedance: 4 Ω and 100 V line (83 Ω)
- Functions: Input priority (Voice over VOX inputs): 100V Emergency input with highest priority, attenuates all other inputs.
- Mute by contact closure, attenuates all inputs except the 100V Emergency input.
- Channel 1 with priority over all other inputs, level selectable.
- Channel 2 and 3 with priority over auxiliary inputs, level selectable. Other functions:
- Power on, protection, signal peak and output signal indicators.
- Temperature-controlled cooling by forced ventilation
- Player: Bluetooth/USB/FM player for background music playback, MP3 and WAV files supported, Maximum USB memory capacity 64 GB, Autoplay, starts playback automatically on power on, Memory of last selected mode, Memory of playback mode (random, repeat)
- Controls: Microphone volume, Mic/line/phantom selector, Master volume, Aux input or player selector, Zone volume Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz), Microphone gain, Priority activation signal level (VOX)
- Power Supply: 230/115 V AC 50-60 Hz, 320 W, Fuse AC 230 V 3.15 A / 115 V 6 A
- Dimensions: 433 x 89 x 360 mm depth. 2 U 19” rack
- Weight: 9.6 kg
- Accessories: Power cable, Rack mounts, FM Antenna, Bluetooth antenna

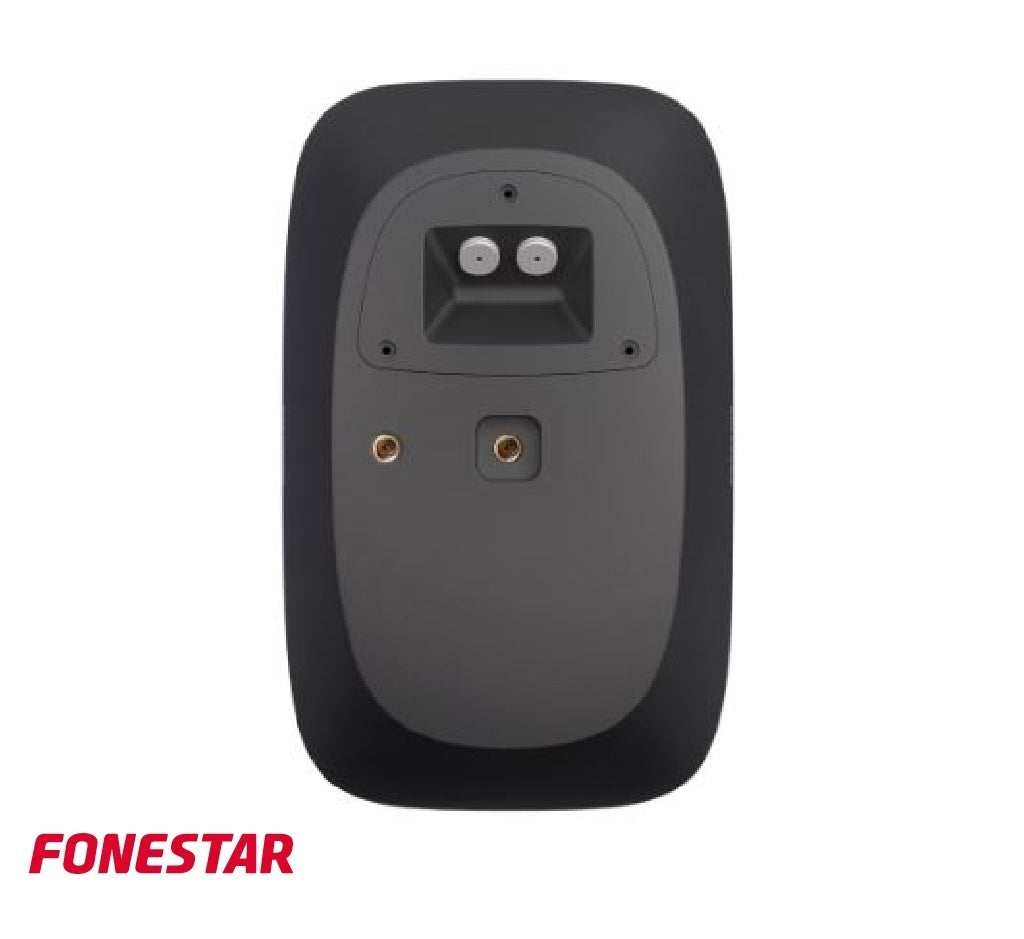

Fonestar SONORA 5TN 5.25" 40W Wall Mount Box Speakers 2 units
- Low-impedance loudspeaker with 100 V line transformer.
- Prepared for outdoor use, waterproof and rustproof materials.
- 1 x 5 ¼" polypropylene woofer, 1 x 1” tweeter
- Response: 80-20,000 Hz
- Impedance: 40 W RMS@100 V (250 Ω), 20 W RMS@100 V (500 Ω), 10 W RMS@100 V (1,000 Ω), 5 W RMS@100 V (2,000 Ω) , Low Z: 8 Ω
- Sensitivity: 86 dB @ 1 W/1 m
- Max Sound Pressure: 99 dB @ max. W/1 m
- Coverage Angle: H/V: 200º/200º@500Hz, 135º/135º@1kHz, 100º/120º@2kHz, 60º/80º@4kHz (-6 dB)
- Protection: IP-66 in compliance with EN 60529, IEC 60068-2-11 Environmental tests (Saline mist)
- Material: ABS, Aluminium mesh grille, Mount with weatherproof treatment, Stainless steel screws
- Switch: W selector in high Z and low Z
- Connectors: Euroblock in and out for cable 0.25 - 2.5 mm² cross section
- Colour: Black
- Dimension: Loudspeaker: 162 x 263 x 147 mm depth, Mount wall plate: 68 x 110 mm, Loudspeaker with mount: 216 mm depth
- Weight: 2.2 kg
- Accessories: Adjustable mounting bracket ± 60º in all directions., Steel safety cable
Fonestar PROX-120Z 120W PA Amplifier, Public Address Amplifier Bluetooth/USB/FM player, 3 outputs zones
- Power: 120 W RMS
- Response: 40-20,000 Hz (-10 dB)
- Distortion: THD+N: < 1% @ 1 kHz
- S/N Ratio: >77 dB
- Protections: Overcurrent, DC and short-circuit at the output
- Inputs: CH 1 balanced mic/line with 48V Phantom, Combo connector (XLR + 6.3mm) and euroblock
- CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector
- Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
- Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
- 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
- 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
- 1 Mute (Emergency Priority) by contact closure. Euroblock connector
- Outputs: 1 line. 2 x RCA connector. 1.25 V RMS (+2 dBV) signal level, 100 V or 4 Ω speaker output, or 3 x 100 V speaker zones with 5-position volume selector switch and OFF
- Impedance: 4 Ω and 100 V line (83 Ω)
- Functions: Input priority (Voice over VOX inputs): 100V Emergency input with highest priority, attenuates all other inputs.
- Mute by contact closure, attenuates all inputs except the 100V Emergency input.
- Channel 1 with priority over all other inputs, level selectable.
- Channel 2 and 3 with priority over auxiliary inputs, level selectable. Other functions:
- Power on, protection, signal peak and output signal indicators.
- Temperature-controlled cooling by forced ventilation
- Player: Bluetooth/USB/FM player for background music playback, MP3 and WAV files supported, Maximum USB memory capacity 64 GB, Autoplay, starts playback automatically on power on, Memory of last selected mode, Memory of playback mode (random, repeat)
- Controls: Microphone volume, Mic/line/phantom selector, Master volume, Aux input or player selector, Zone volume Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz), Microphone gain, Priority activation signal level (VOX)
- Power Supply: 230/115 V AC 50-60 Hz, 320 W, Fuse AC 230 V 3.15 A / 115 V 6 A
- Dimensions: 433 x 89 x 360 mm depth. 2 U 19” rack
- Weight: 9.6 kg
- Accessories: Power cable, Rack mounts, FM Antenna, Bluetooth antenna
Fonestar SONORA 5TN 5.25" 40W Wall Mount Box Speakers 2 units
- Low-impedance loudspeaker with 100 V line transformer.
- Prepared for outdoor use, waterproof and rustproof materials.
- 1 x 5 ¼" polypropylene woofer, 1 x 1” tweeter
- Response: 80-20,000 Hz
- Impedance: 40 W RMS@100 V (250 Ω), 20 W RMS@100 V (500 Ω), 10 W RMS@100 V (1,000 Ω), 5 W RMS@100 V (2,000 Ω) , Low Z: 8 Ω
- Sensitivity: 86 dB @ 1 W/1 m
- Max Sound Pressure: 99 dB @ max. W/1 m
- Coverage Angle: H/V: 200º/200º@500Hz, 135º/135º@1kHz, 100º/120º@2kHz, 60º/80º@4kHz (-6 dB)
- Protection: IP-66 in compliance with EN 60529, IEC 60068-2-11 Environmental tests (Saline mist)
- Material: ABS, Aluminium mesh grille, Mount with weatherproof treatment, Stainless steel screws
- Switch: W selector in high Z and low Z
- Connectors: Euroblock in and out for cable 0.25 - 2.5 mm² cross section
- Colour: Black
- Dimension: Loudspeaker: 162 x 263 x 147 mm depth, Mount wall plate: 68 x 110 mm, Loudspeaker with mount: 216 mm depth
- Weight: 2.2 kg
- Accessories: Adjustable mounting bracket ± 60º in all directions., Steel safety cable
