DAXPRO YH600 2 x 600W 2U Power Amplifier

Available: In Stock
RM2,030.00
Enquiry Now
Share:
  • Output power per channel:
    8 ohms RMS : 2 x 600W,  4 ohms RMS : 2 x 900W,
    Bridge @ 8 ohms RMS: 1 x 1800W
    Input Sensitivity: 0.775V / 1.0V / 1.4V / 2V Optional
    Input Impedance: 20k ohm Balance / 10k ohm Unbalance
    Distortion THD: 1kHz @ half power 8 ohms < 0.5%
    Frequency Response: 20Hz ~ 20kHz (± 0.5dB)
    Signal to Noise Ratio (SNR): ≥100dB
    Degree of Seperation: -77dB@ 8ohms ref 1kHz
    Damping Factor: >230 (F = 8ohm/1kHz)
    Slew Rate: 15V/uS
    Output Circuit: Class H + Transformer

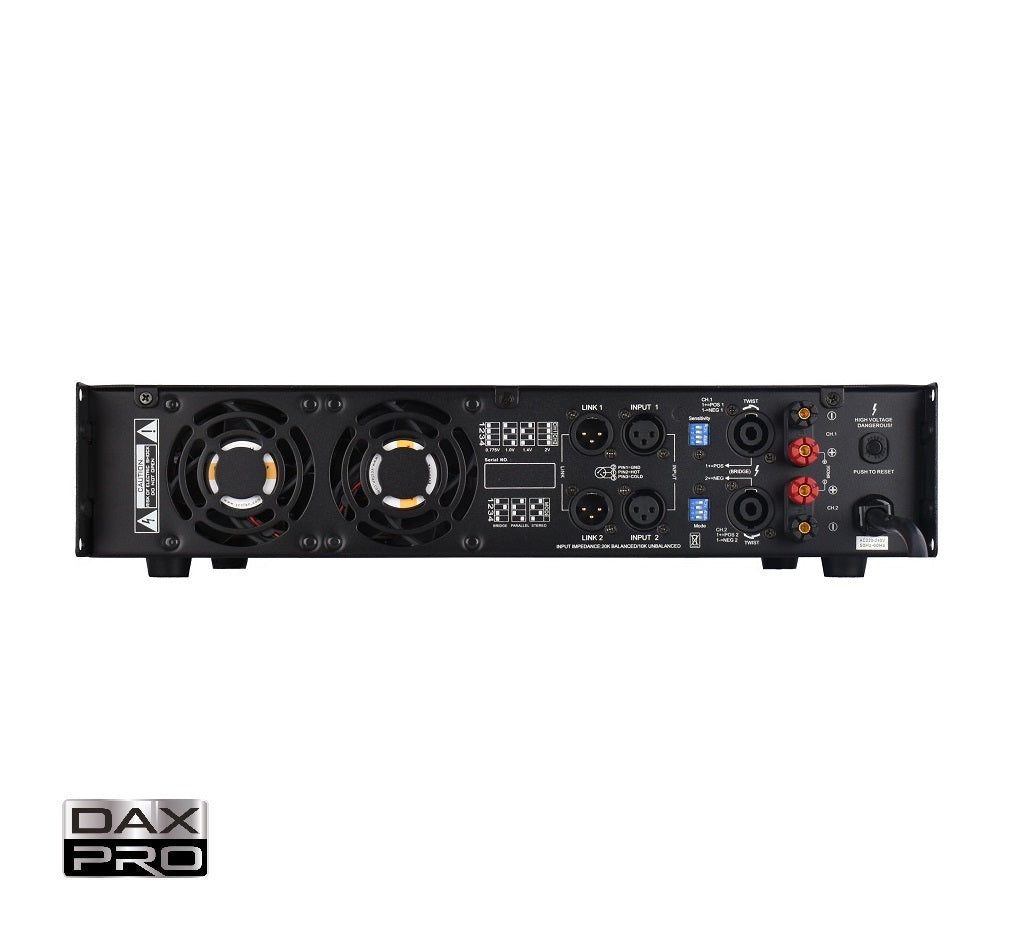

    Input Connectors: Female XLR x 2 / Male XLR x 2
    Output Connectors: Speakon and binding post
    Status LEDs: Fault, Clip (-3dB, -6dB, -9dB, -12dB), On
    Protection: Soft start , DC fault , Overheat , Overload

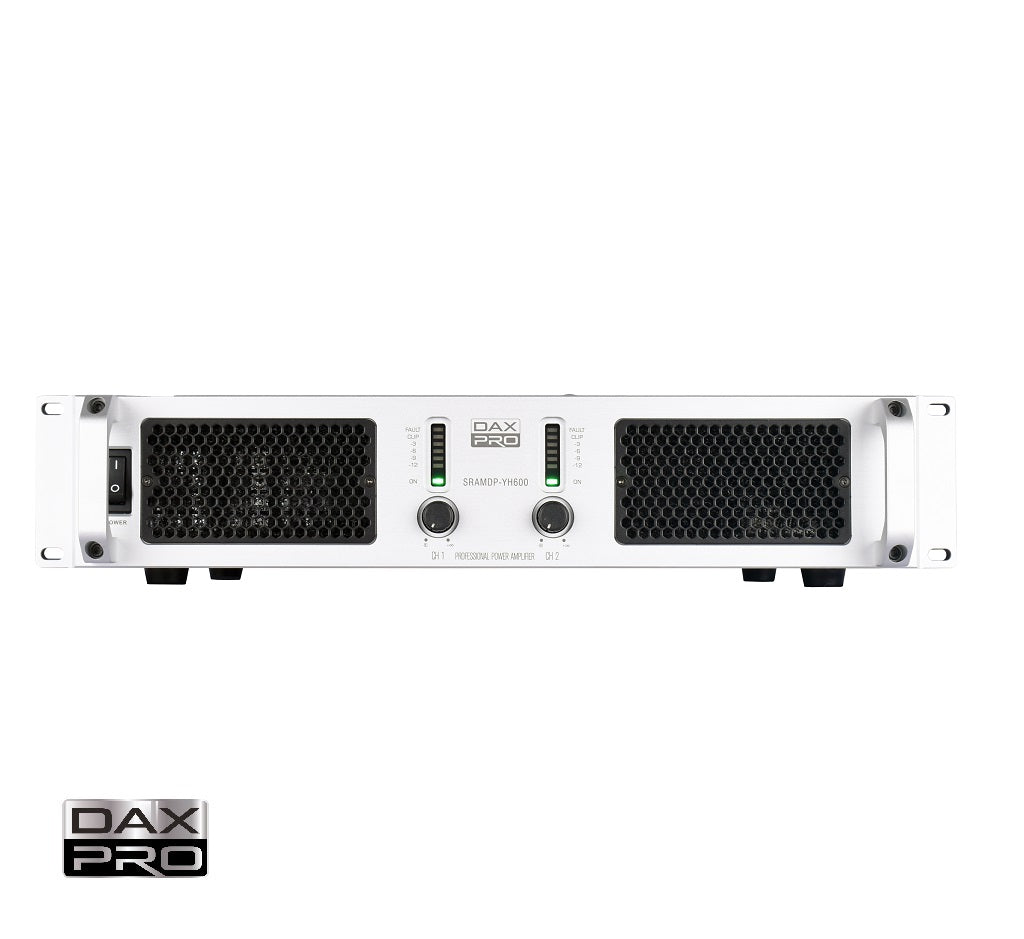

    Controls : Front Panel : Volume controls x 2 CH,
    Rear Panel: 3 Mode switch (Paraller/Stereo/Bridge) / Input sensitivity switch
    Power Supply: AC 240V / 50~60Hz
    Product Dimension (W x H x D): 483 x 88 x 378 mm
    Box Dimension (W x H x D): 570 x 135 x 490 mm
    Net / Gross Weight: 15.2 kg / 17 kg
  • Output power per channel:  8 ohms RMS : 2 x 600W,  4 ohms RMS : 2 x 900W,  Bridge @ 8 ohms RMS: 1 x 1800W Input Sensitivity: 0.775V / 1.0V / 1.4V / 2V Optional Input Impedance: 20k ohm Balance / 10k ohm Unbalance Distortion THD: 1kHz @ half power 8 ohms < 0.5% Frequency Response: 20Hz ~ 20kHz (± 0.5dB) Signal to Noise Ratio (SNR): ≥100dB Degree of Seperation: -77dB@ 8ohms ref 1kHz Damping Factor: >230 (F = 8ohm/1kHz) Slew Rate: 15V/uS Output Circuit: Class H + Transformer Input Connectors: Female XLR x 2 / Male XLR x 2 Output Connectors: Speakon and binding post Status LEDs: Fault, Clip (-3dB, -6dB, -9dB, -12dB), On Protection: Soft start , DC fault , Overheat , Overload Controls : Front Panel : Volume controls x 2 CH,  Rear Panel: 3 Mode switch (Paraller/Stereo/Bridge) / Input sensitivity switch Power Supply: AC 240V / 50~60Hz Product Dimension (W x H x D): 483 x 88 x 378 mm Box Dimension (W x H x D): 570 x 135 x 490 mm Net / Gross Weight: 15.2 kg / 17 kg
