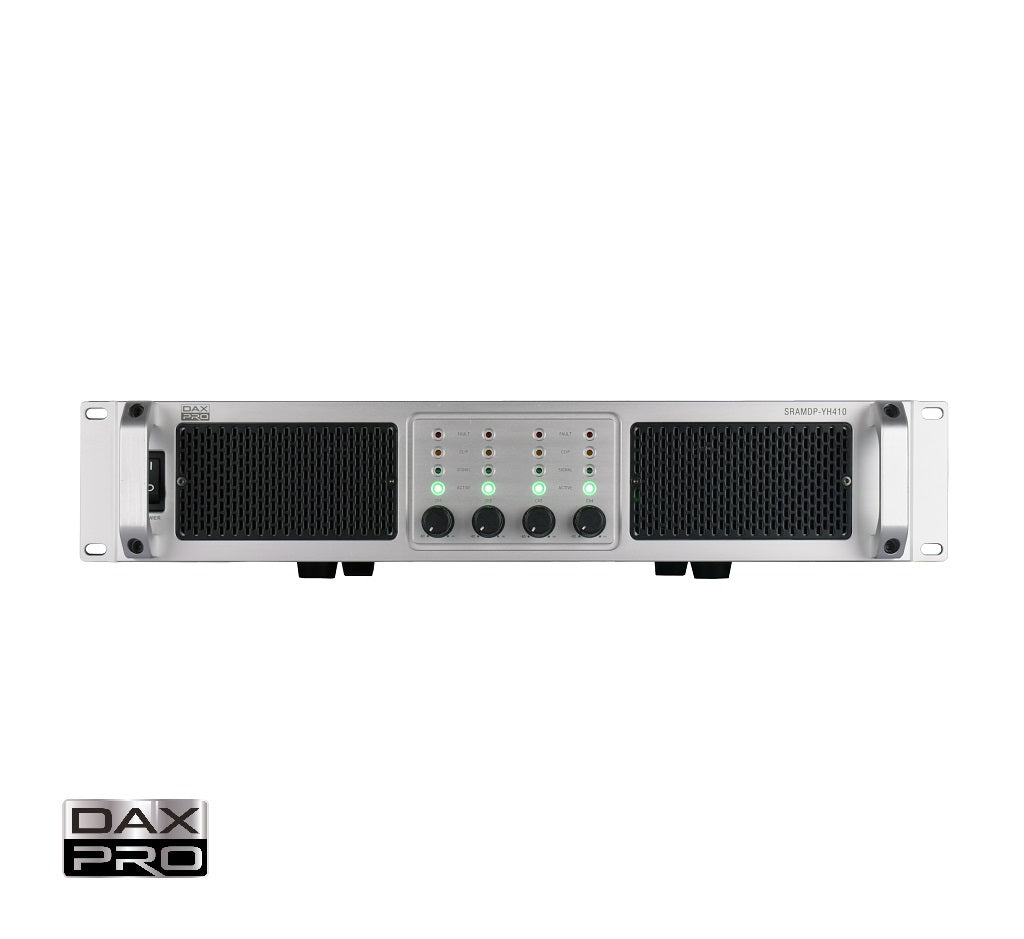

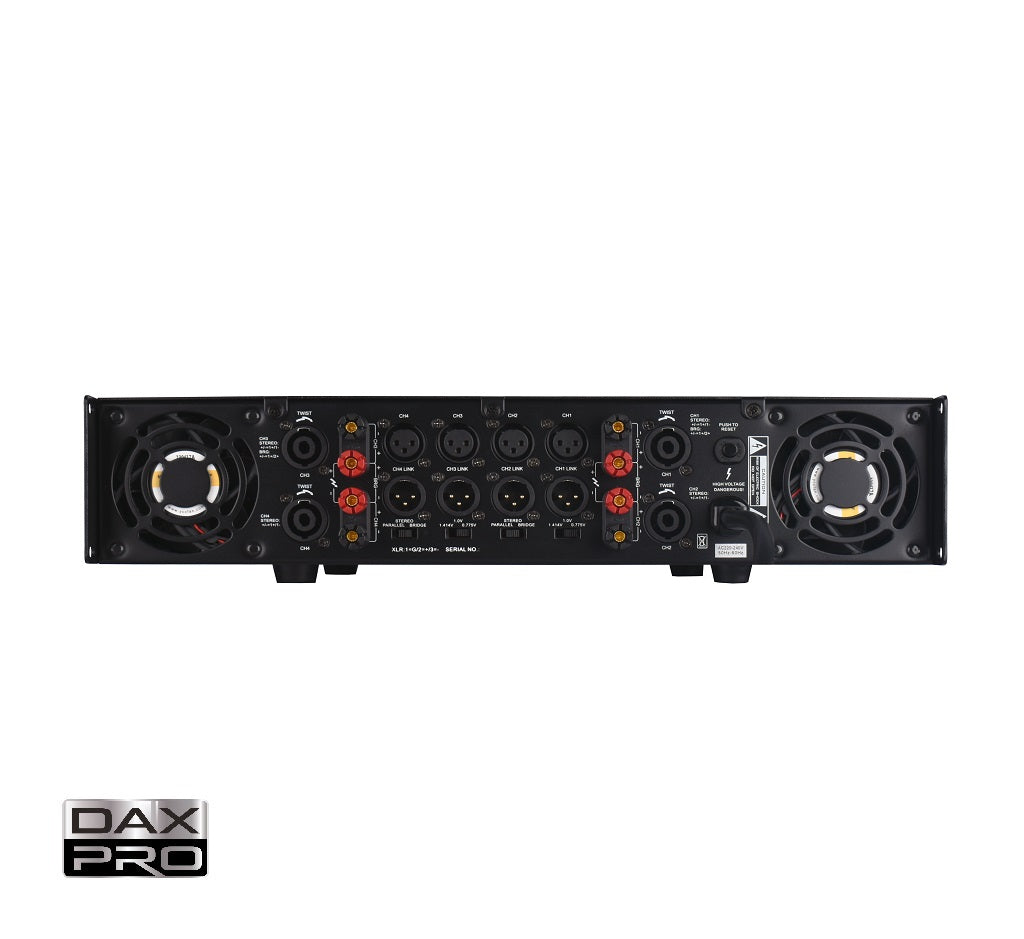

DAXPRO YH410 4 x 1000W 2U Power Amplifier

Available: In Stock
RM3,980.00
Enquiry Now
Share:
  • Output power per channel:
    8 ohms RMS : 4 x 1000W  4 ohms RMS : 4 x 1500W,
    Bridge @ 8 ohms RMS: 2 x 3000W
    Input Sensitivity: 0.775V / 1.0V / 1.4V Optional
    Input Impedance: 20k ohm Balance / 10k ohm Unbalance
    Distortion THD: 1kHz @ half power 8 ohms < 0.1%
    Frequency Response: 20Hz ~ 20kHz (± 0.5dB)
    Signal to Noise Ratio (SNR): ≥98dB
    Crosstalk: 62dB @ Rated 8ohms power output ref 1kHz
    Damping Factor: >230
    Slew Rate: 15V/uS
    Output Circuit: Class H + copper wire toroidal transformer
    Input Connectors: Female XLR x 4 / Male XLR x 4
    Output Connectors: Speakon and binding post
    Status LEDs: Fault, Clip, Signal, Active
    Protection: Soft start, Short circuit, Limiter, DC fault, Thermal cut
    Controls : Front Panel : Volume controls x 4 CH
    Rear Panel: 3 Mode switch (Paraller/Stereo/Bridge) / Input sensitivity switch
    Power Supply: AC 240V / 50~60Hz
    Product Dimension (W x H x D): 483 x 88 x 525 mm
    Box Dimension (W x H x D): 570 x 135 x 570 mm
    Net / Gross Weight: 28.5 kg / 30 kg
