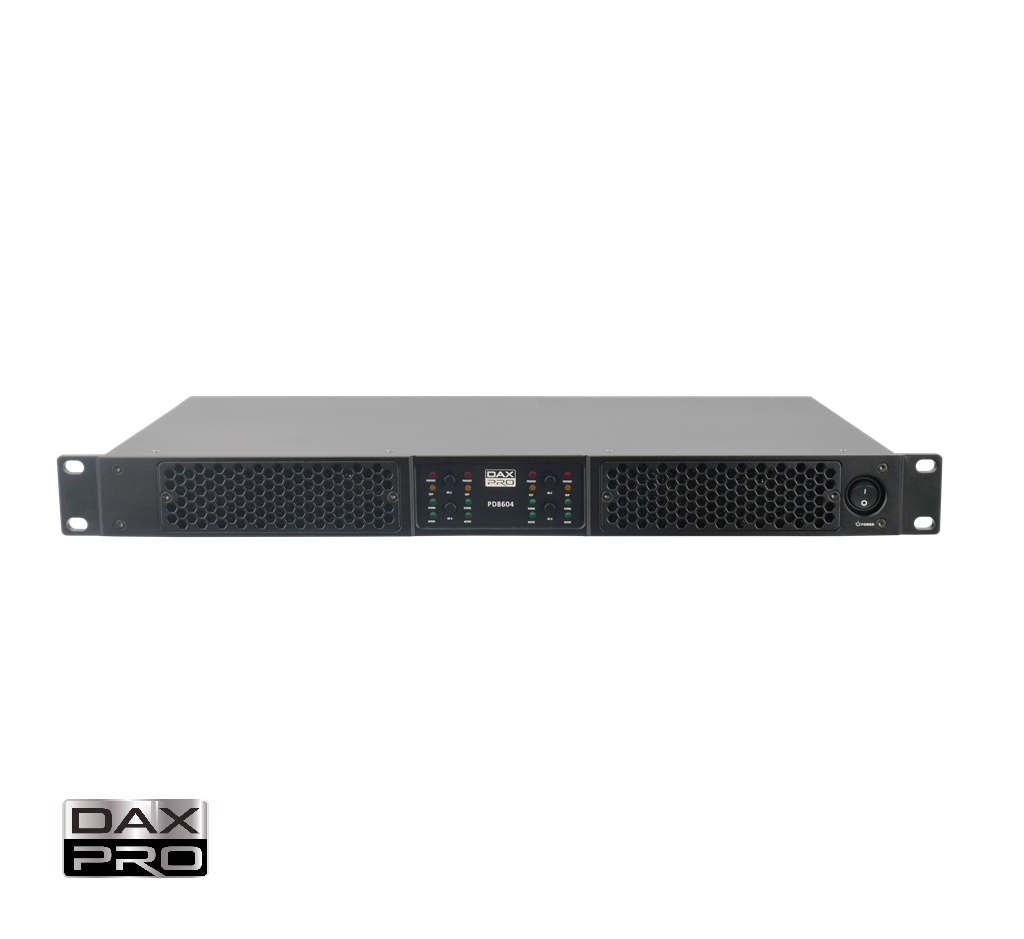

DAXPRO PD8604 Pro Class-D 600 W Power Amplifier

Available: In Stock
RM2,000.00
Enquiry Now
Share:
  • Active PFC technology that improves power factor up to 98%
  • Low heat output, heat sink stays below 70°C at full load
  • Compact at 1U chassis, lightweight and space-saving
  • Lightweight and durable : Easy to handle and built for long-term use.
  • Rated Output Power (Load Type): 8 Ω (Stereo) 4 x 600 W, 4 Ω (Stereo) 4 x 960 W,
    8 Ω (Bridge) 2 x 1680 W
  • Frequency Response: 20 Hz - 20 kHz, ±0.5 dB
  • THD+N: <0.05%
  • Input Impedance: Balance 20 kΩ, Unbalance 10 kΩ
  • SNR: >102 dB/20 Hz - 20 kHz, 8 Ω load, A Weighted
  • Damping Factor: 250
  • Crosstalk Isolation: >76 dB (at 1 kHz)
  • Input Sensitivity Options: 20 dB, 23 dB, 26 dB, 29 dB, 32 dB, 35 dB, 38 dB, 41 dB (optional)
  • Power Supply: AC 100-240 V, 50/60 Hz

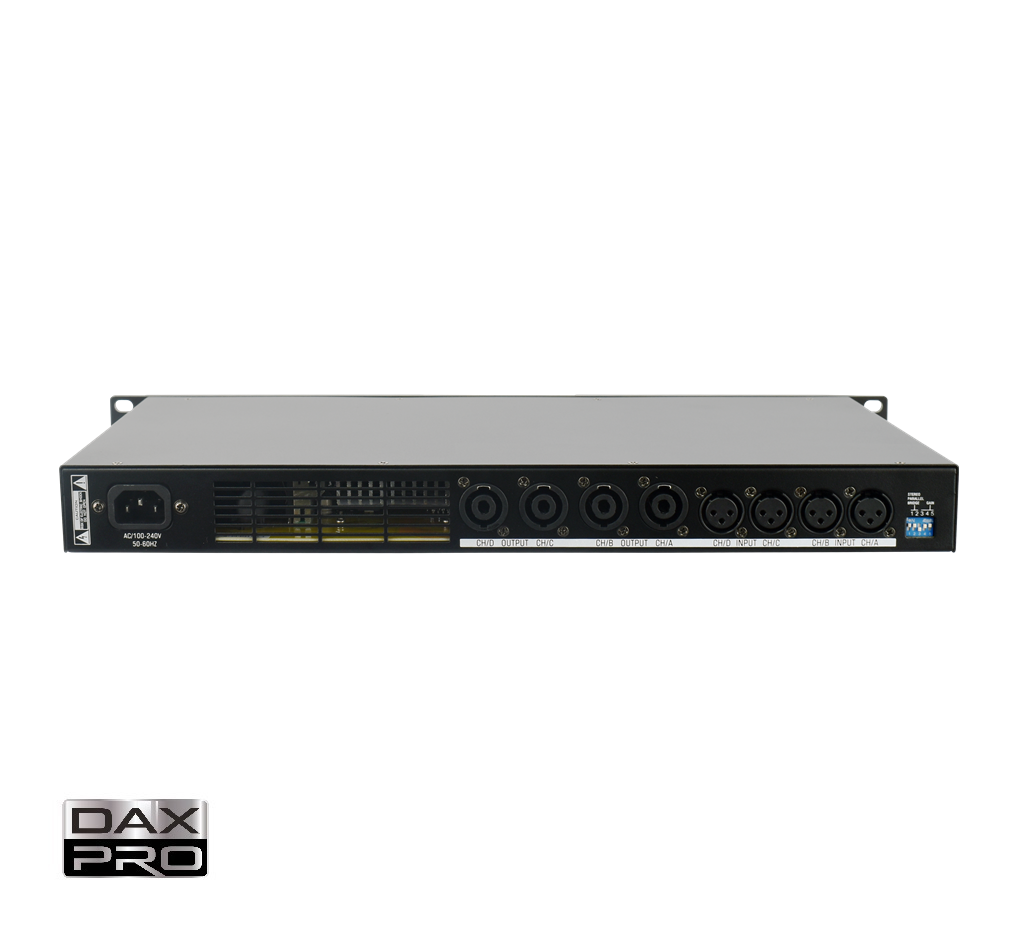

  • Input Socket: Female Sockets
  • Output Socket: Speakon Sockets
  • Mode Selection: Stereo/Bridge/Parallel
  • Product Dimension (W x H x D): 482 x 44 x 250 mm
  • Box Dimension (W x H x D): 555 x 98 x 395 mm
  • Net / Gross Weight: 5 kg/6 kg
