DYNAMAX U905HH / U905HB Professional UHF Wireless Microphone System
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.
Categories
DYNAMAX

DYNAMAX U905HH / U905HB Professional UHF Wireless Microphone System

Available: In Stock
RM749.00
Enquiry Now
Share:

  • Intelligent Auto-Frequency Scan - Scan the UHF spectrum in real time to avoid distorted frequencies and seamlessly connect to the optimal channel

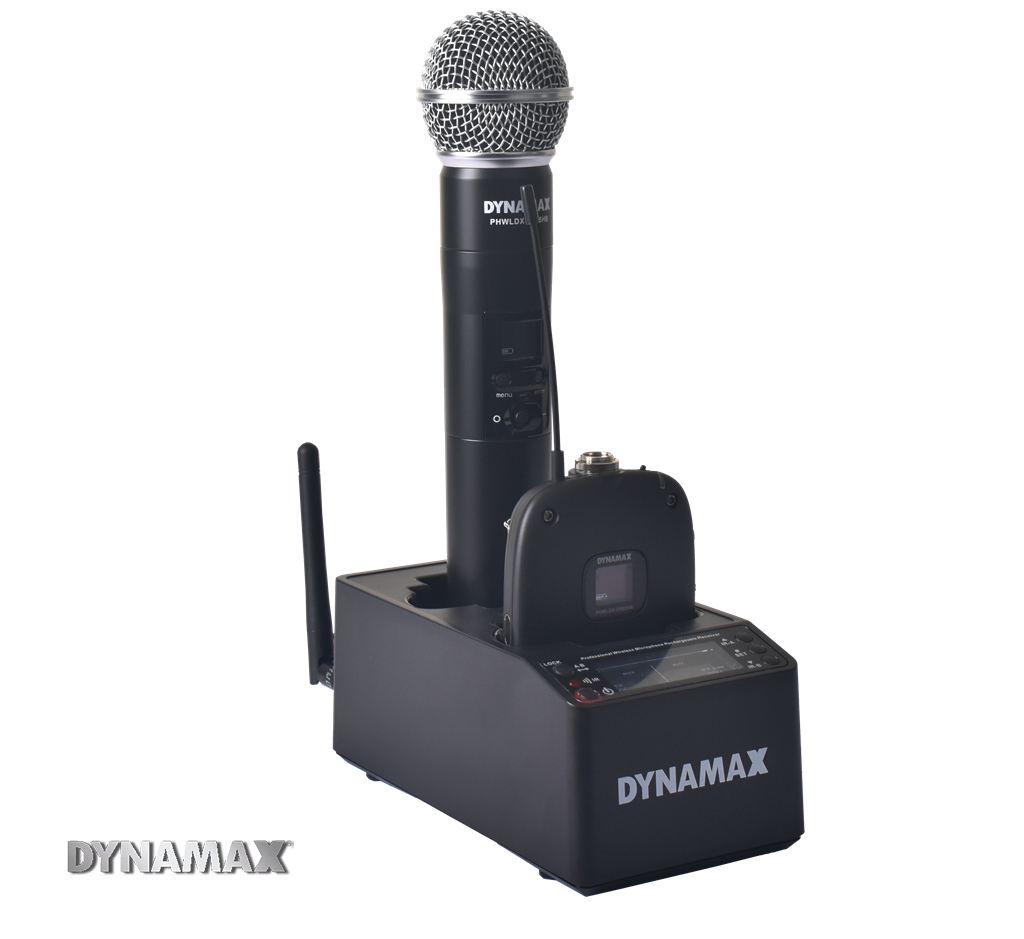

    Dedicated Charging Base - Simply place the microphone/transmitter into the charging dock for
    easy and organized charging

    Designed for Clear & Reliable Vocal Reproduction - Suitable for speech, presentations and live vocal applications.

    Long Operating Distance up to 330 Ft - Provides extended wireless coverage in open areas, making it ideal for large halls and spacious venues.

    Versatile Professional Application - Ideal for conference rooms, classrooms, houses of worship, events and live performances.

    Transmitter Polar Pattern: Unidirectional
    Frequency Range: 610.0 - 680.0 MHz
    Frequency Stability: ± 0.005 %
    Frequency Response: 50 Hz - 15 kHz ( ± 3 dB )
    Maximum Frequency Deviation: ± 120 kHz
    Modulation Mode: FM
    Selectable Channels: 100 Channels each Microphone
    Power Requirement: 4 x Rechargeable AA Batteries ( 1.2 V )
    Power Consumption: < 10 mW
    RF Output Power: 15 ± 1.5 dBm
    Channel Spacing: 250 kHz
    Dynamic Range: > 100 dB
    Total Harmonic Distortion: < 0.5 %
    Signal-to-Noise Ratio: > 100 dB
    Operating Distance: Up to 330 ft ( open area )
    Operating Temperature: 0°C ~ 50°C
    Receiver Control: Lock, IR, Power Button, IR-A, SET, IR-B
    LCD Screen Indicator: RF Signal, Battery Status, Frequency ( MHz ), Channel
    Mix Out: 6.35 mm Socket x 1
    Antenna: TNC Female Socket x 2
    Carrier Frequency: 610.0 - 680.0 MHz
    Frequency Response: 50 Hz - 15 kHz ( ± 3 dB )
    Power Supply: DC 12 V
    Power Consumption: 195 ± 15 mA
    Signal-to-Noise Ratio: > 100 dB
    Total Harmonic Distortion (THD): > 0.5 %
    Product Dimension (Receiver): 85 x 165 x 70 mm
    Packaging Dimension ( W x D x H ): 395 x 87 x 300 mm
    Net/Gross Weight: 1 kg / 2.08 kg (U905HH), 0.75 kg / 1.85 kg (U905HB)
    Accessories:
    DC Adaptor x 1 / Microphone Windscreen for Handheld / 6.3 mm Mono Cable x 1
    / 1.2 V Rechargable Batteries x 4 / Antenna x 2

  • Intelligent Auto-Frequency Scan - Scan the UHF spectrum in real time to avoid distorted frequencies and seamlessly connect to the optimal channel
    Dedicated Charging Base - Simply place the microphone/transmitter into the charging dock for  easy and organized charging
    Designed for Clear & Reliable Vocal Reproduction - Suitable for speech, presentations and live vocal applications.
    Long Operating Distance up to 330 Ft - Provides extended wireless coverage in open areas, making it ideal for large halls and spacious venues.
    Versatile Professional Application - Ideal for conference rooms, classrooms, houses of worship, events and live performances.
    Transmitter Polar Pattern: Unidirectional Frequency Range: 610.0 - 680.0 MHz Frequency Stability: ± 0.005 % Frequency Response: 50 Hz - 15 kHz ( ± 3 dB ) Maximum Frequency Deviation: ± 120 kHz Modulation Mode: FM Selectable Channels: 100 Channels each Microphone Power Requirement: 4 x Rechargeable AA Batteries ( 1.2 V ) Power Consumption: < 10 mW RF Output Power: 15 ± 1.5 dBm Channel Spacing: 250 kHz Dynamic Range: > 100 dB Total Harmonic Distortion: < 0.5 % Signal-to-Noise Ratio: > 100 dB Operating Distance: Up to 330 ft ( open area ) Operating Temperature: 0°C ~ 50°C Receiver Control: Lock, IR, Power Button, IR-A, SET, IR-B LCD Screen Indicator: RF Signal, Battery Status, Frequency ( MHz ), Channel Mix Out: 6.35 mm Socket x 1 Antenna: TNC Female Socket x 2 Carrier Frequency: 610.0 - 680.0 MHz Frequency Response: 50 Hz - 15 kHz ( ± 3 dB ) Power Supply: DC 12 V Power Consumption: 195 ± 15 mA Signal-to-Noise Ratio: > 100 dB Total Harmonic Distortion (THD): > 0.5 % Product Dimension (Receiver): 85 x 165 x 70 mm Packaging Dimension ( W x D x H ): 395 x 87 x 300 mm Net/Gross Weight: 1 kg / 2.08 kg (U905HH), 0.75 kg / 1.85 kg (U905HB) Accessories:  DC Adaptor x 1 / Microphone Windscreen for Handheld / 6.3 mm Mono Cable x 1 / 1.2 V Rechargable Batteries x 4 / Antenna x 2
