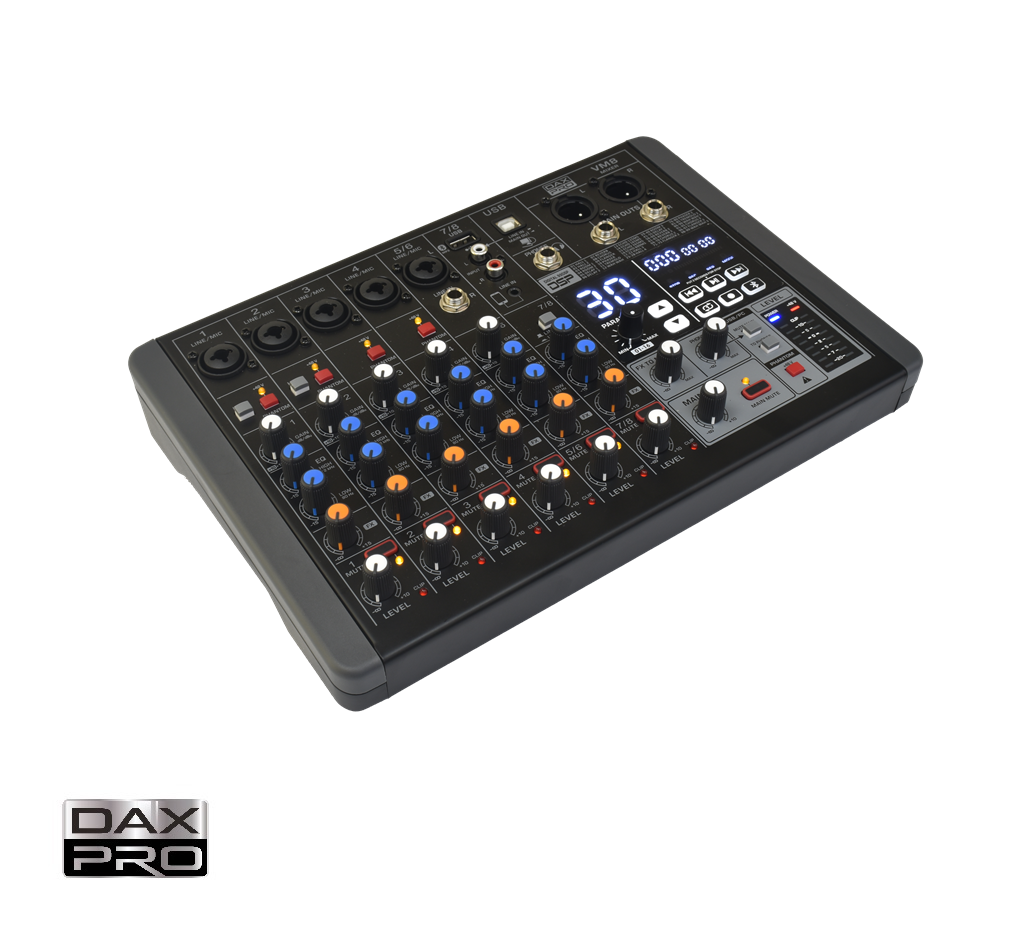

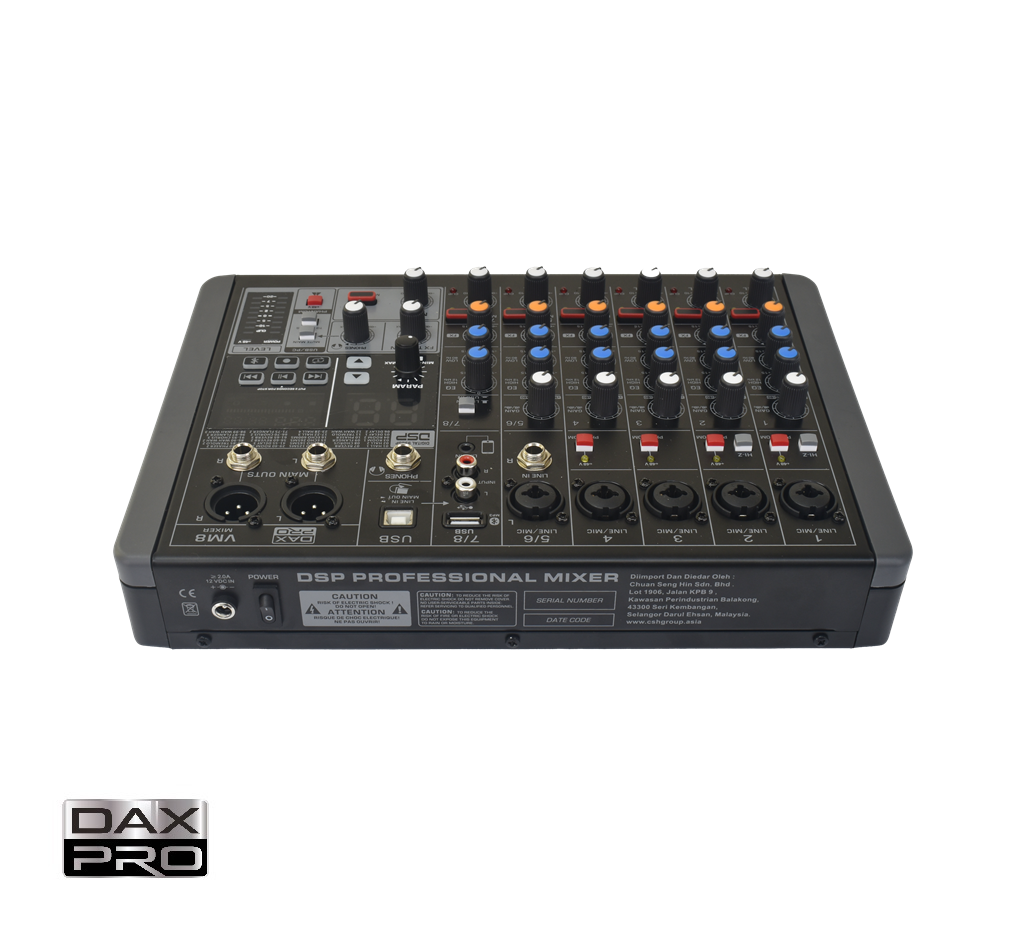

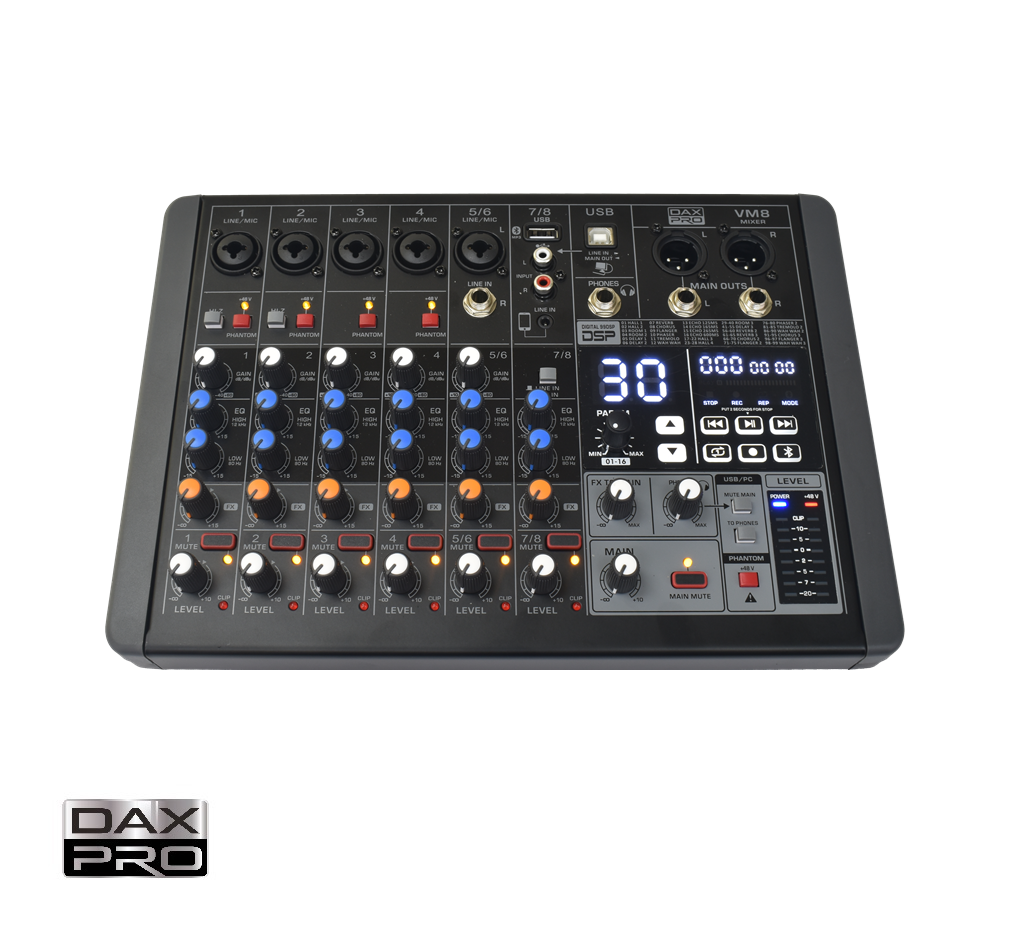

DAXPRO VM8 Professional 8CH Mixer Console
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.
Categories
DAXPRO

DAXPRO VM8 Professional 8CH Mixer Console

Available: In Stock
RM400.00
Enquiry Now
Share:
  • 5 mic preamps with 48 V Phantom Power
  • 8 channels : 5 mono channels &
    2 stereo channels with EQ, FX, mute, gain & volume control
  • 99 built-in DSP effects
  • Integrated USB audio interface (16-bit / 44.1 kHz recording)
  • Bluetooth streaming, USB MP3 playback, and stereo/USB switch control
  • LED level meters, balanced XLR outputs, and ¼” TS jacks
  • For live setups, content creators, and studio work alike
  • Mic E.I.N. (20 Hz - 20 kHz): XLR, balance, Discrete input circuit
  • @ 0 Ω source resistance: - 134 dB / 135.7 dB A-weighted
  • @ 50 Ω source resistance: - 131 dB / 133.3 dB A-weighted
  • @ 150 Ω source resistance: - 129 dB / 131.5 dB A-weighted
  • Mic Gain: +10 dB to +60 dB
  • Mic Frequency Response: < 10 Hz - 150 kHz (-1 dB) / < 10 Hz - 200 kHz (-3 dB)
  • Mic Impedance: approx. 2.6 kΩ balanced
  • Signal to Noise Ratio: 110 dB / 112 dBA (0 dBu In @ +22 dB Gain)
  • Distortion (THD + Noise): 0.005% / 0.004% A-weighted
  • Type: 6.3 mm stereo channel, unbalanced
  • Impedance: approx. 10 kΩ - 20 kΩ unbalanced
  • Gain Range: +10 dB to -40 dB
  • Maximum Input Level: +22 dBu @ 0 dB gain
  • Phantom Power: Selectable on each channel
  • Stereo Line Inputs: 6.3 mm stereo channels, unbalanced l Approx. 10 Ω (Impedance) l +22 dBu (Max vol)
  • Balanced Mono & Stereo Channel: 80 Hz / ±15 dB (Low) l 12 kHz / ±15 dB (High)
  • Aux Send (Auxiliary Output): 6.3 mm mono, unbalanced l Approx. 120 Ω (Impedance) l +22 dBu (Max vol)
  • Sub Grouping Output: 6.3 mm mono, unbalanced l Approx. 120 Ω (Impedance) l +22 dBu (Max vol)
  • Main Output: XLR balanced 6.3 mm stereo, balanced l Approx. 240 Ω / 120 Ω (Impedance)
  • DSP: 32-bit digital to analog converter / Scan Speed : 40 kHz
  • Power Supply: 100 - 240 V AC, 50 - 60 Hz
  • Product / Box Dimension (W x D x H): 300 x 210 x 55 mm / 340 x 280 x 110 mm
  • Net / Gross Weight: 11.4 kg / 14.8 kg
