Fonestar EF-322-EN Speakers Hanging Spheres

Available: In Stock
RM1,540.00
Enquiry Now
Share:
  • Current design that allows to integrate it as a decorative element
  • Crisp and clean sound. Uniform horizontal coverage

  • For background music and fire systems with voice evacuation.

  • Built and certified in compliance with EN 54-24

  • 100 V line transformer and low impedance.
  • 5 m installation cable.
  • Loudspeaker for voice alarm systems
  • Power: 20 W RMS
  • Loudspeaker: 5'' full-range, paper diaphragm
  • Response: 130-20,000 Hz (-10 dB)
  • Impedance: 20 W RMS @ 100 V/70 V (500 Ω/250 Ω)
    10 W RMS @ 100 V/70 V (1.000 Ω/500 Ω)
    5 W RMS @ 100 V/70 V (2.000 Ω/1.000 Ω)
    Low Z: 6 Ω
  • Sensitivity: 89 dB @ 1 W/1 m, 100 Hz - 10 kHz, Pink Noise, based on EN 54-24
    77 dB @ 1 W/4m, 100 Hz - 10 kHz, Pink Noise, based on EN 54-24
  • Max Sound Pressure: 102 dB @ max. W/1m, 100 Hz - 10 kHz, Pink Noise, based on EN 54-24
    89 dB @ max. W/4m, 100 Hz - 10 kHz, Pink Noise, based on EN 54-24
  • Coverage Angle: H/V (-6 dB): 360º@500Hz, 190º@1kHz, 100º@2kHz, 65º@4kHz
  • Protection: Type A (based EN 54-24: IP-21)
  • Material: Shell: ABS+PC
    Steel grille with anti-oxidation surface treatment and painted.

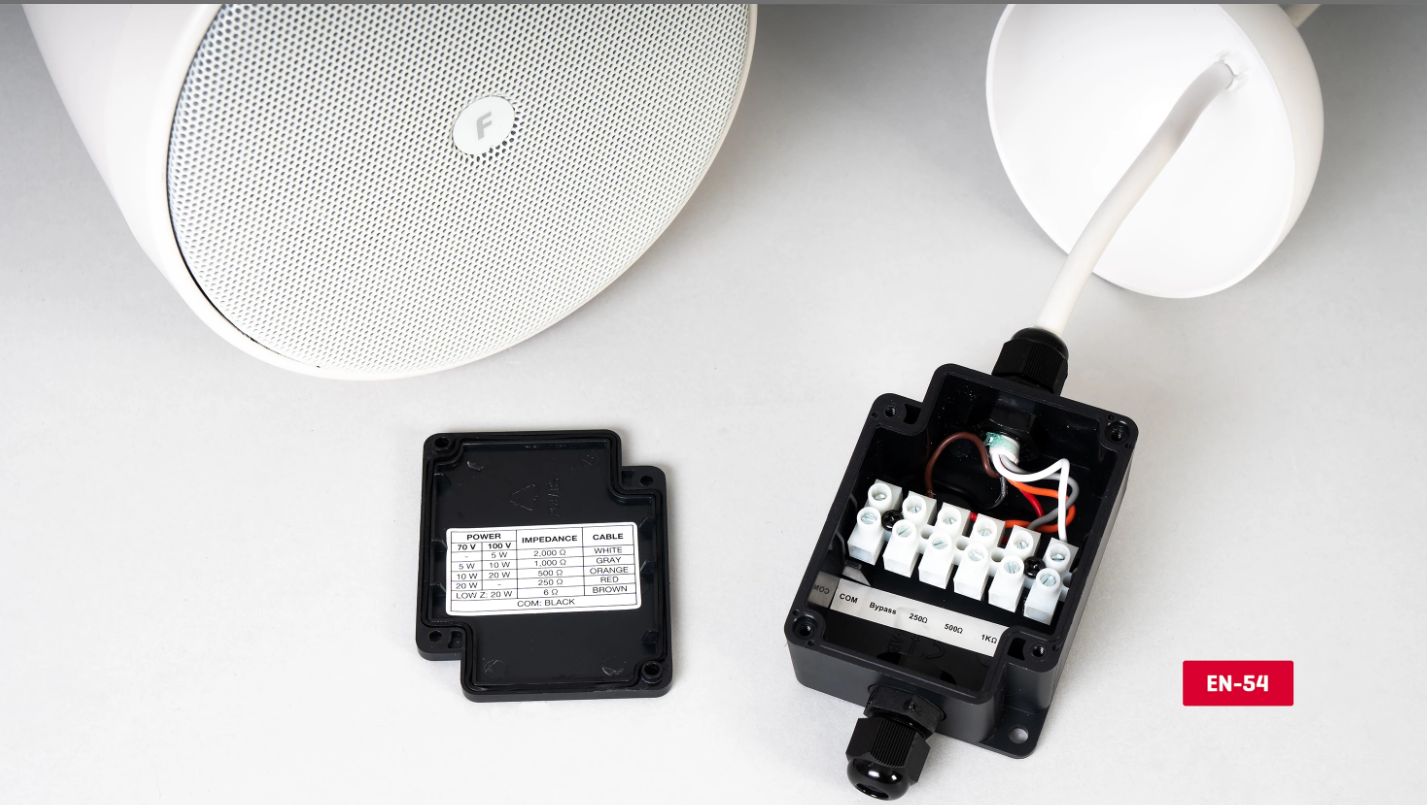

    Junction box for 6.5 mm outer diameter round cable.
  • Connections: Connection box for 6.5 mm outer diameter cable. Connection terminals for cable cross-section 0.25 - 0.75 mm2.
  • Temperature Range: -10ºC to +55ºC
  • Colour: White
  • Dimensions: 154 mm Ø x 222 mm height
    5 m installation cable
  • Weight: 2 kg
