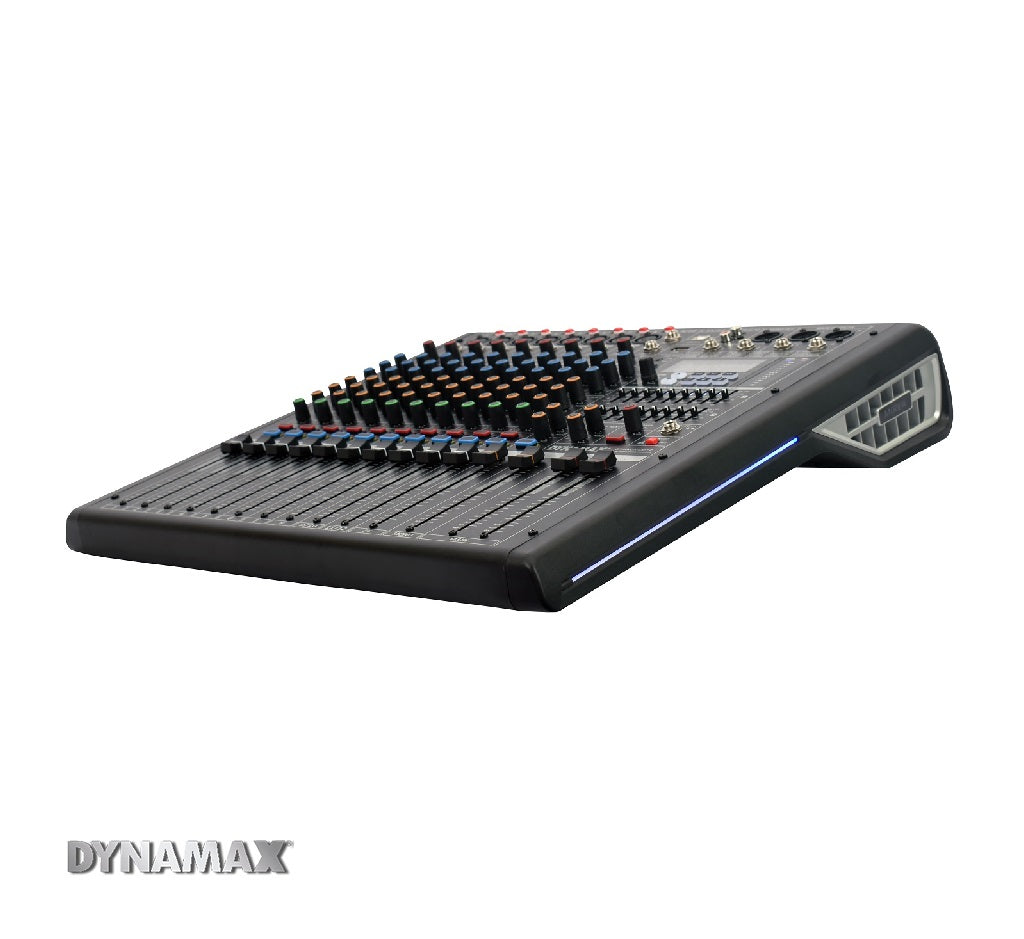

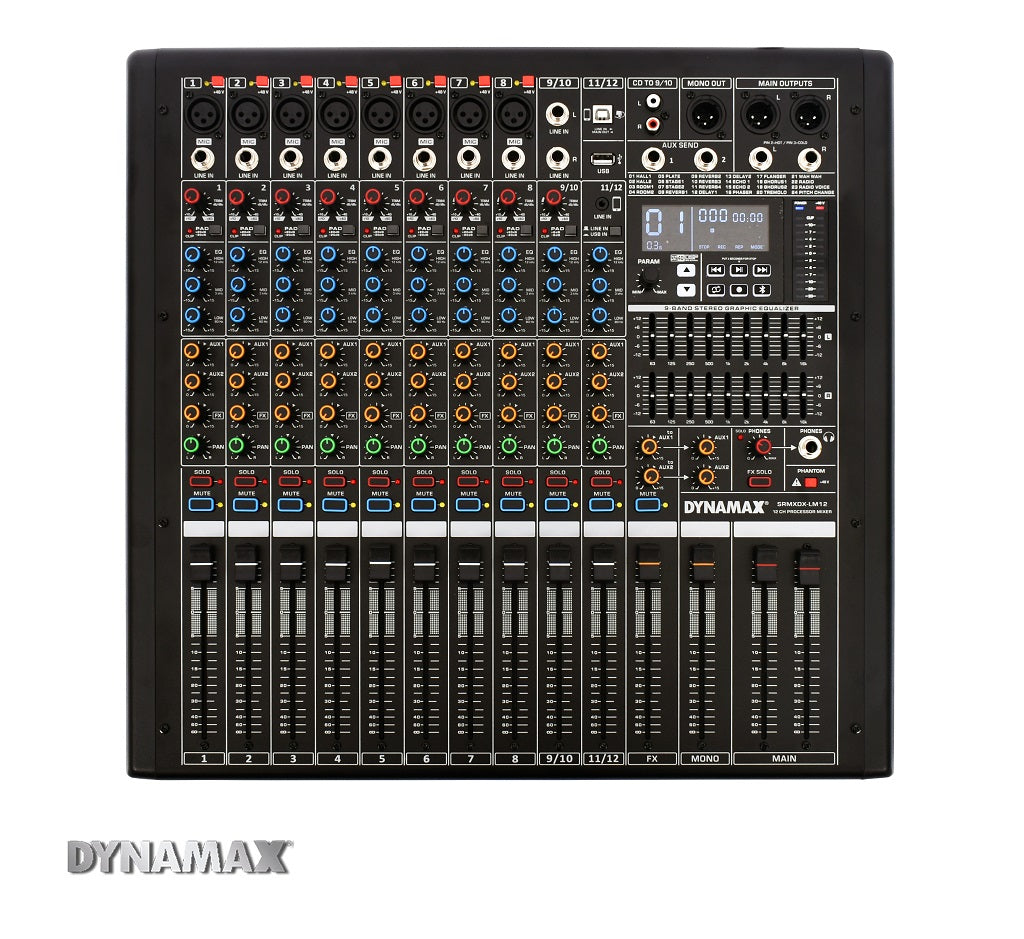

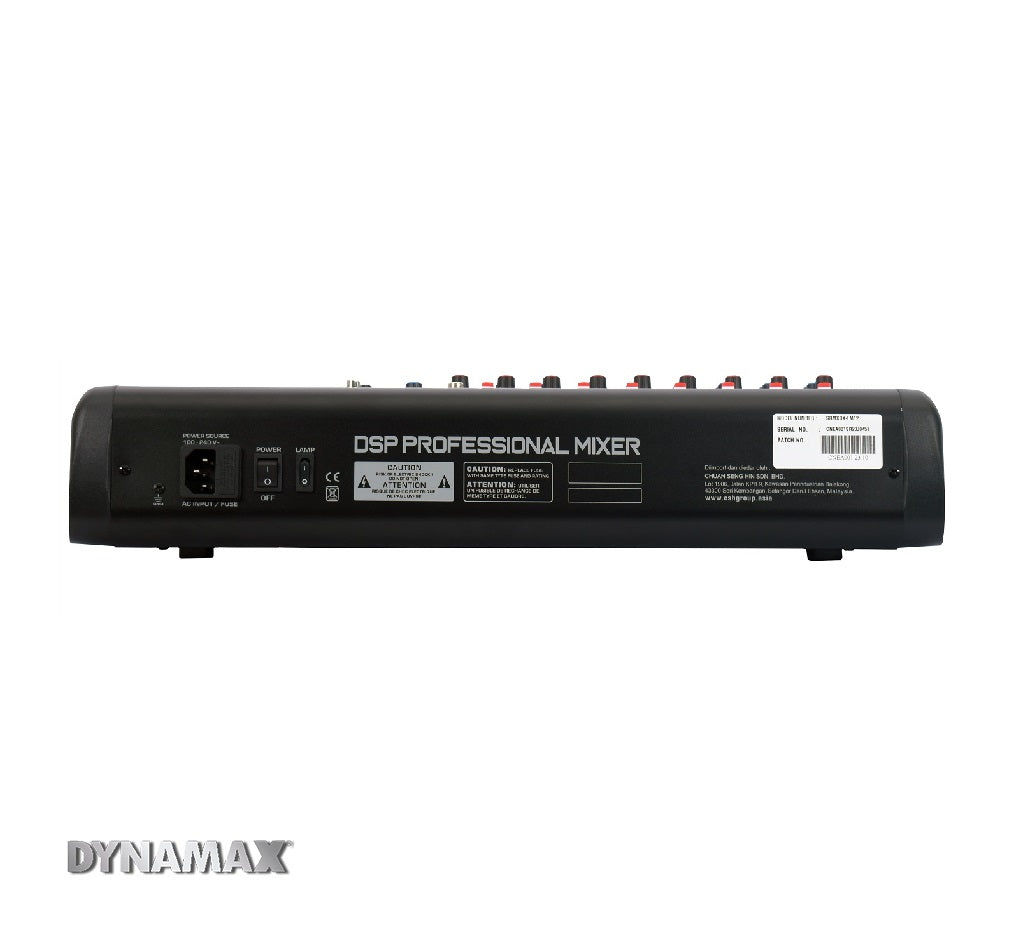

DYNAMAX LM12 12CH Mixing Console (8 mono + 2 Stereo)
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.
Categories
DYNAMAX

DYNAMAX LM12 12CH Mixing Console (8 mono + 2 Stereo)

Available: In Stock
RM1,099.00
Enquiry Now
Share:
  • With USB type B port to connect with PC
  • Bluetooth and USB port for MP3 playback
  • 24-Digital preset effect, 32-bit processing
  • With solo switch on each channel
  • 3 Band EQ (High, Mid, Low) on mic channels
  • 9-Band stereo graphic equalizer
  • 2 groups output (XLR & ¼” TRS )
  • AUX send x 2 (1/4” jack)
  • AUX control switch for each channel
  • +48V Phantom power (individual channel)
  • Mixing Channel: 12CH (8 mono + 2 Stereo)
  • Aux: AUX send x2 (1/4” jack)
  • Main Out: 2 Group (XLR & ¼” TRS )
  • Headphone Out: ¼” TRS jack
  • Mic E.I.N. (20 Hz ~ 20 kHz): XLR, electronically balanced, discrete input circuit
  • @0Ω source resistance: -134 dB / 135.7 dB A-weighted
  • @50Ω source resistance: -131 dB / 133.3 dB A-weighted
  • @150Ω source resistance: -129 dB / 130.5 dB A-weighted
  • Frequency response: <10 Hz ~ 150 kHz (-1 dB) @ <10 Hz ~ 200 kHz (-3 dB)
  • Gain range: +10 to +60 dB
  • Max. input level: +12 dBu @ +10 dB gain
  • Impedance: approx. 2.6k Ω balanced
  • Signal to noise ratio: 110 dB / 112 dB A-weighted (0 dBu in @ +22 dB gain)
  • Distortion: 0.005% / 0.004% A-weighted
  • Line Input: ¼” TRS connector electronically balanced
  • Impedance: approx. 20k Ω balanced, 10k Ω unbalanced
  • Gain range: +10 to -40dB
  • Max. input level: 30 dBu
  • DSP: 32-bit Sigma-Delta, 64/128 times oversampling, 40 kHz (Sampling Rate)
  • Power Supply: 100 ~ 240 V
  • Product Dimension: 484 x 450 x 95 mm
  • Box Dimension: 540 x 530 x 150 mm
  • Net/ Gross Weight: 5.7 kg / 6.2 kg
  • With USB type B port to connect with PC
  • Bluetooth and USB port for MP3 playback
  • 24-Digital preset effect, 32-bit processing
  • With solo switch on each channel
  • 3 Band EQ (High, Mid, Low) on mic channels
  • 9-Band stereo graphic equalizer
  • 2 groups output (XLR & ¼” TRS )
  • AUX send x 2 (1/4” jack)
  • AUX control switch for each channel
  • +48V Phantom power (individual channel)
  • Mixing Channel: 12CH (8 mono + 2 Stereo)
  • Aux: AUX send x2 (1/4” jack)
  • Main Out: 2 Group (XLR & ¼” TRS )
  • Headphone Out: ¼” TRS jack
  • Mic E.I.N. (20 Hz ~ 20 kHz): XLR, electronically balanced, discrete input circuit
  • @0Ω source resistance: -134 dB / 135.7 dB A-weighted
  • @50Ω source resistance: -131 dB / 133.3 dB A-weighted
  • @150Ω source resistance: -129 dB / 130.5 dB A-weighted
  • Frequency response: <10 Hz ~ 150 kHz (-1 dB) @ <10 Hz ~ 200 kHz (-3 dB)
  • Gain range: +10 to +60 dB
  • Max. input level: +12 dBu @ +10 dB gain
  • Impedance: approx. 2.6k Ω balanced
  • Signal to noise ratio: 110 dB / 112 dB A-weighted (0 dBu in @ +22 dB gain)
  • Distortion: 0.005% / 0.004% A-weighted
  • Line Input: ¼” TRS connector electronically balanced
  • Impedance: approx. 20k Ω balanced, 10k Ω unbalanced
  • Gain range: +10 to -40dB
  • Max. input level: 30 dBu
  • DSP: 32-bit Sigma-Delta, 64/128 times oversampling, 40 kHz (Sampling Rate)
  • Power Supply: 100 ~ 240 V
  • Product Dimension: 484 x 450 x 95 mm
  • Box Dimension: 540 x 530 x 150 mm
  • Net/ Gross Weight: 5.7 kg / 6.2 kg
